PD-2503

MEAN WELL

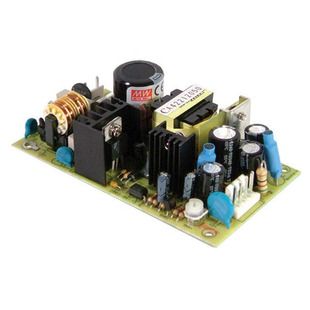

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD-2503
Manufacturer/Brand:	MEAN WELL
Product description	AC/DC CONVERTER 5V 3.3V 25W
Datasheets:	PD-2503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4759 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4759 pcs

Reference Price (In US Dollars)

1 pcs: $6.578

10 pcs: $6.191

25 pcs: $5.998

50 pcs: $5.804

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD-2503

Part Number	PD-2503	Manufacturer	MEAN WELL
Description	AC/DC CONVERTER 5V 3.3V 25W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4759 pcs	Data sheet	PD-2503.pdf
Voltage - Output 4	-	Voltage - Output 3	-
Voltage - Output 2	3.3V	Voltage - Output 1	5V
Voltage - Isolation	3kV	Voltage - Input	85 ~ 264 VAC, 120 ~ 370 VDC
Type	Open Frame	Size / Dimension	4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm)
Series	PD-2503	Power (Watts)	25W
Other Names	1866-3762 PD-2503-ND	Operating Temperature	-10°C ~ 70°C (With Derating)
Number of Outputs	2	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Load Required	Yes
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Adjustable Output, Universal Input	Efficiency	72%
Detailed Description	Open Frame AC DC Converter 2 Output 5V 3.3V 3A, 3A 85 ~ 264 VAC, 120 ~ 370 VDC Input	Current - Output (Max)	3A, 3A
Approvals	CE, cURus, TUV	Applications	ITE (Commercial)
