HomeProductsOptoelectronicsLEDs - Circuit Board Indicators, Arrays, Light BarSSA-LXH1225YD

SSA-LXH1225YD

Lumex, Inc.Lumex, Inc.

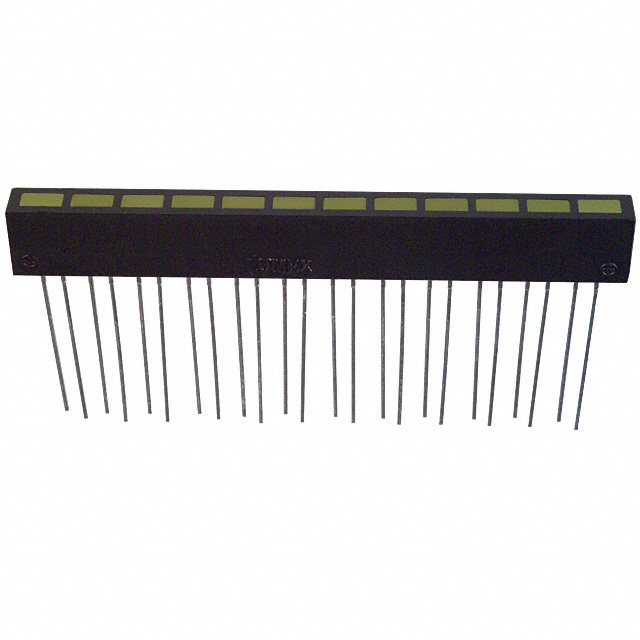

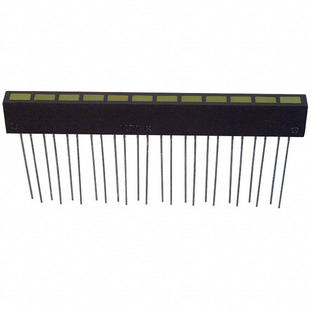

SSA-LXH1225YD Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SSA-LXH1225YD
Manufacturer/Brand: Lumex, Inc.
Product description LED ARRAY 2.5X5MM 12-SEG YELLOW
Datasheets: SSA-LXH1225YD.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 17288 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 17288 pcs
Reference Price (In US Dollars)
1 pcs
$2.023
10 pcs
$1.686
25 pcs
$1.416
200 pcs
$1.214
400 pcs
$1.079
600 pcs
$0.978
1000 pcs
$0.897
2600 pcs
$0.86
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.023

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SSA-LXH1225YD

Part Number SSA-LXH1225YD Manufacturer Lumex, Inc.
Description LED ARRAY 2.5X5MM 12-SEG YELLOW Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 17288 pcs Data sheet SSA-LXH1225YD.pdf
Wavelength - Peak 590nm Voltage Rating 2.1V
Viewing Angle 110° Series -
Packaging Bulk Other Names 67-1211
LU20037
SSALXH1225YD
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Millicandela Rating 100mcd Manufacturer Standard Lead Time 14 Weeks
Lens Type Diffused, Tinted Lens Style/Size Rectangle with Flat Top, 5.00mm x 2.70mm
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description LED Circuit Board Indicator Bar - 12 Wide, SIP Yellow (x 12) Diffused, Tinted 2.1V 30mA Rectangle with Flat Top, 5.00mm x 2.70mm Through Hole
Current 30mA Configuration Bar - 12 Wide, SIP
Color Yellow (x 12)
