Lumex, Inc.
| Part Number | SML-LX3939RGBC-TR | Manufacturer | Lumex, Inc. |
|---|---|---|---|
| Description | LED RGBCLEAR 10.1MM X 10.1MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6103 pcs | Data sheet | SML-LX3939RGBC-TR.pdf |
| Wavelength | 626nm Red, 525nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.5V Green, 3.5V Blue |
| Viewing Angle | 130° | Thermal Resistance of Package | - |
| Temperature - Test | 25°C | Supplier Device Package | SMD |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) | Series | TitanBrite™ |
| Packaging | Original-Reel® | Package / Case | 6-SMD, No Lead Exposed Pad |
| Other Names | 67-2086-6 SMLLX3939RGBCTR |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 6 (Time on Label) | Lumens/Watt @ Current - Test | 34 lm/W Red, 29 lm/W Green, 7 lm/W Blue |

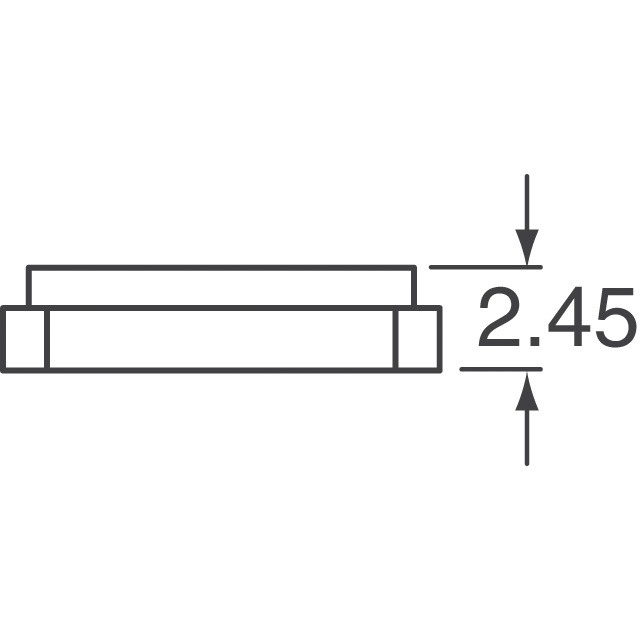

| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.096" (2.45mm) |
| Flux @ Current/Temperature - Test | 25 lm Red, 35 lm Green, 8 lm Blue | Detailed Description | LED Lighting Color TitanBrite™ Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue 6-SMD, No Lead Exposed Pad |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue | Current - Max | 300mA Red, 350mA Green, 350mA Blue |
| Color | Red, Green, Blue (RGB) |
