Lite-On, Inc.

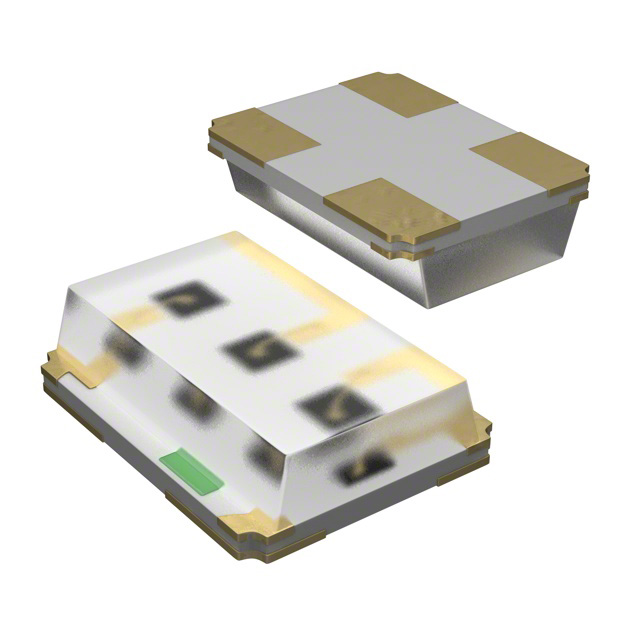

| Part Number | LTST-C19FD1WT | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED BLUE/GRN/ORG DIFF CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 622975 pcs | Data sheet | LTST-C19FD1WT.pdf |
| Wavelength - Peak | 468nm Blue, 520nm Green, 611nm Orange | Wavelength - Dominant | 470nm Blue, 525nm Green, 605nm Orange |
| Voltage - Forward (Vf) (Typ) | 3.5V Blue, 3.5V Green, 2V Orange | Viewing Angle | 130° |
| Supplier Device Package | Chip LED | Size / Dimension | 2.10mm L x 1.60mm W |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 160-2022-2 LTST-C19FD1WT-ND LTSTC19FD1WT |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Millicandela Rating | 104mcd Blue, 261mcd Green, 113mcd Orange | Manufacturer Standard Lead Time | 12 Weeks |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.55mm | Features | - |
| Detailed Description | Blue, Green, Orange 470nm Blue, 525nm Green, 605nm Orange LED Indication - Discrete 3.5V Blue, 3.5V Green, 2V Orange 4-SMD, No Lead | Current - Test | 20mA Blue, 20mA Green, 20mA Orange |
| Configuration | Common Anode | Color | Blue, Green, Orange |
