HomeProductsOptoelectronicsDisplay Modules - LED Character and NumericLTP-3786JD-03

LTP-3786JD-03

Lite-On, Inc.Lite-On, Inc.

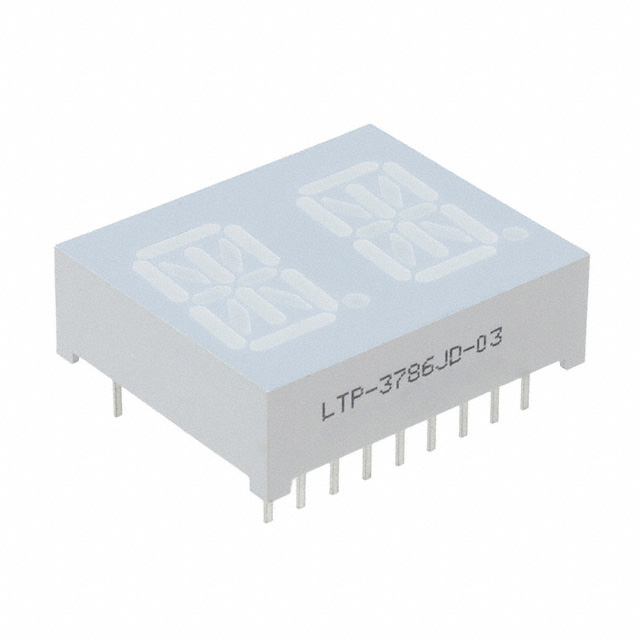

LTP-3786JD-03 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: LTP-3786JD-03
Manufacturer/Brand: Lite-On, Inc.
Product description DISPLAY ALPHA-NUM RED LC .54" CA
Datasheets: LTP-3786JD-03.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 40483 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 40483 pcs
Reference Price (In US Dollars)
400 pcs
$0.744
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.744

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of LTP-3786JD-03

Part Number LTP-3786JD-03 Manufacturer Lite-On, Inc.
Description DISPLAY ALPHA-NUM RED LC .54" CA Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 40483 pcs Data sheet LTP-3786JD-03.pdf
Wavelength - Peak 650nm Voltage - Forward (Vf) (Typ) 2.1V
Size / Dimension 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) Series -
Power Dissipation (Max) 70mW Packaging Tube
Package / Case 18-DIP (0.600", 15.24mm) Other Names 160-1984-5
LTP-3786JD-03-ND
LTP3786JD03
Number of Characters 2 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Millicandela Rating 0.52mcd Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Display Type 14-Segment, Alphanumeric
Digit/Alpha Size 0.54" (13.72mm) Detailed Description Character LED Display Module Red 14-Segment, Alphanumeric 2 Character Common Anode 2.1V 20mA 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) 18-DIP (0.600", 15.24mm)
Current - Test 20mA Common Pin Common Anode
Color Red
