CONN005

Linx TechnologiesLinx Technologies

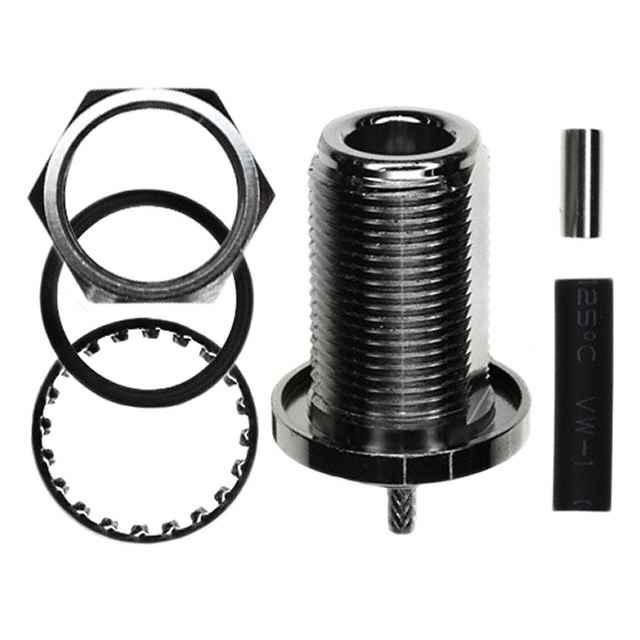

CONN005 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CONN005
Manufacturer/Brand: Linx Technologies
Product description CONN N RCPT STR 50 OHM SOLDER
Datasheets: 1.CONN005.pdf2.CONN005.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4511 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4511 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CONN005

Part Number CONN005 Manufacturer Linx Technologies
Description CONN N RCPT STR 50 OHM SOLDER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4511 pcs Data sheet 1.CONN005.pdf2.CONN005.pdf
Voltage Rating 500V Shield Termination Crimp
Series - Packaging Bulk
Operating Temperature -65°C ~ 165°C Number of Ports 1
Mounting Type Panel Mount Mounting Feature Bulkhead - Front Side Nut
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mating Cycles 500
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss 0.3dB
Ingress Protection - Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Lockwasher, 1 Nut
Impedance 50 Ohm Housing Color Silver
Frequency - Max 11GHz Features -
Fastening Type Threaded Dielectric Material Polytetrafluoroethylene (PTFE)
Detailed Description N Type Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder Contact Termination Solder
Connector Type Receptacle, Female Socket Connector Style N Type
Center Contact Plating Gold Center Contact Material Brass
Cable Group RG-174 Body Material Brass
Body Finish Nickel
