ANT-DB1-RAF-SMA

Linx Technologies

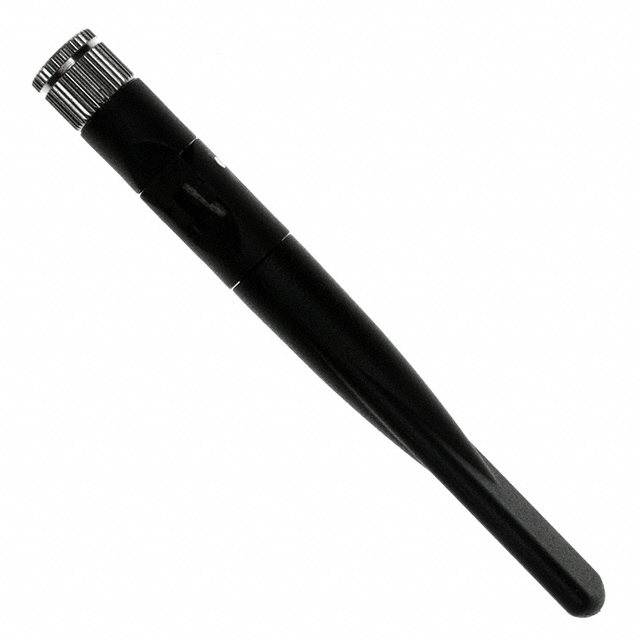

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANT-DB1-RAF-SMA
Manufacturer/Brand:	Linx Technologies
Product description	RF ANT 2.45GHZ/5.3GHZ WHIP TILT
Datasheets:	ANT-DB1-RAF-SMA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8270 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8270 pcs

Reference Price (In US Dollars)

1 pcs: $3.71

25 pcs: $3.432

100 pcs: $3.26

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.71

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANT-DB1-RAF-SMA

Part Number	ANT-DB1-RAF-SMA	Manufacturer	Linx Technologies
Description	RF ANT 2.45GHZ/5.3GHZ WHIP TILT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8270 pcs	Data sheet	ANT-DB1-RAF-SMA.pdf
VSWR	1.9	Termination	Connector, SMA Male
Series	RAF	Return Loss	-
Packaging	Bulk	Other Names	ANTDB1RAFSMA Q3239693
Number of Bands	2	Mounting Type	Connector Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	4.130" (104.90mm)	Gain	2.5dBi, 4.6dBi
Frequency Range	2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz	Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band)	2.45GHz, 5.3GHz	Features	-
Detailed Description	2.45GHz, 5.3GHz Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Tilt RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz 2.5dBi, 4.6dBi Connector, SMA Male Connector Mount	Applications	Bluetooth, Thread, Wi-Fi, Zigbee™
Antenna Type	Whip, Tilt
