TYS8040220M-10

Laird Technologies

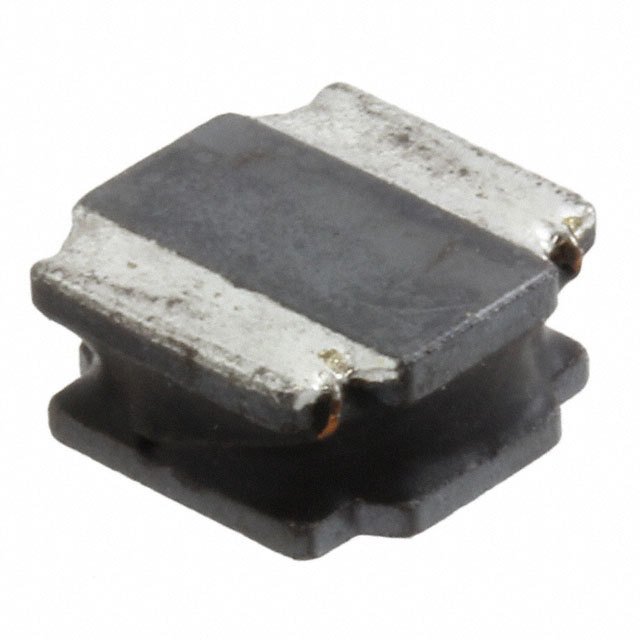

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TYS8040220M-10
Manufacturer/Brand:	Laird Technologies
Product description	FIXED IND 22UH 2.1A 69 MOHM SMD
Datasheets:	1.TYS8040220M-10.pdf 2.TYS8040220M-10.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	285854 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 285854 pcs

Reference Price (In US Dollars)

1000 pcs: $0.115

3000 pcs: $0.108

5000 pcs: $0.105

10000 pcs: $0.101

25000 pcs: $0.098

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.115

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TYS8040220M-10

Part Number	TYS8040220M-10	Manufacturer	Laird Technologies
Description	FIXED IND 22UH 2.1A 69 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	285854 pcs	Data sheet	1.TYS8040220M-10.pdf 2.TYS8040220M-10.pdf
Type	-	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Shielding	Shielded	Series	TYS8040
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	240-2754-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	22µH	Height - Seated (Max)	0.165" (4.20mm)
Frequency - Self Resonant	9.5MHz	Detailed Description	22µH Shielded Inductor 2.1A 69 mOhm Max Nonstandard
DC Resistance (DCR)	69 mOhm Max	Current Rating	2.1A
Current - Saturation	2.4A
