TYS5040101M-10

Laird Technologies

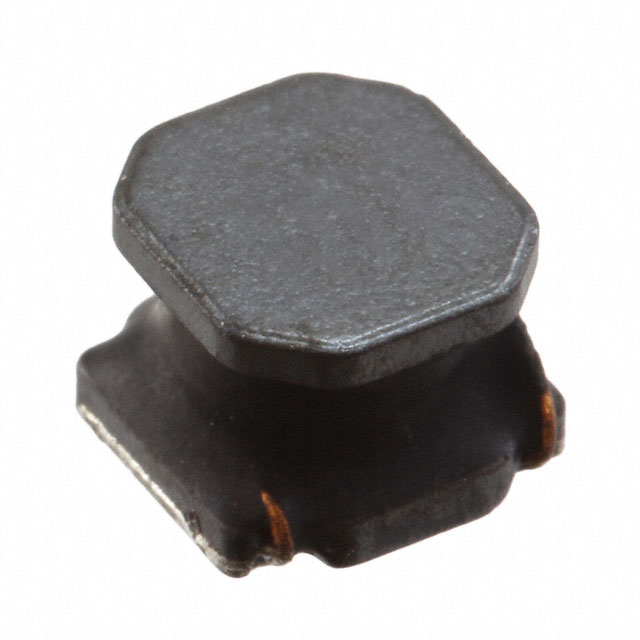

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TYS5040101M-10
Manufacturer/Brand:	Laird Technologies
Product description	FIXED IND 100UH 700MA 560 MOHM
Datasheets:	1.TYS5040101M-10.pdf 2.TYS5040101M-10.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	461455 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 461455 pcs

Reference Price (In US Dollars)

1500 pcs: $0.08

3000 pcs: $0.076

7500 pcs: $0.073

10500 pcs: $0.071

37500 pcs: $0.069

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.08

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TYS5040101M-10

Part Number	TYS5040101M-10	Manufacturer	Laird Technologies
Description	FIXED IND 100UH 700MA 560 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	461455 pcs	Data sheet	1.TYS5040101M-10.pdf 2.TYS5040101M-10.pdf
Type	-	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Shielding	Shielded	Series	TYS5040
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	240-2711-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	100µH	Height - Seated (Max)	0.165" (4.20mm)
Frequency - Self Resonant	4.7MHz	Detailed Description	100µH Shielded Inductor 700mA 560 mOhm Max Nonstandard
DC Resistance (DCR)	560 mOhm Max	Current Rating	700mA
Current - Saturation	750mA
