LDZ2817220K-10

Laird Technologies

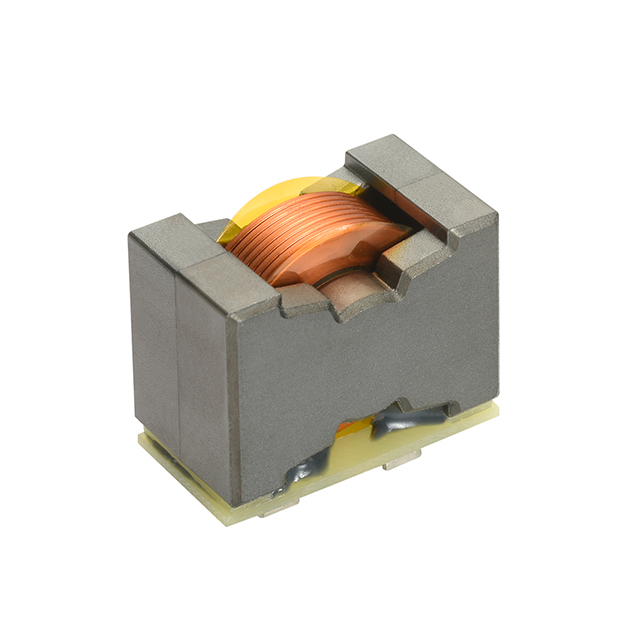

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LDZ2817220K-10
Manufacturer/Brand:	Laird Technologies
Product description	FIXED IND 22UH 16.4A 3MOHM TH
Datasheets:	LDZ2817220K-10.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13105 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13105 pcs

Reference Price (In US Dollars)

1 pcs: $2.977

10 pcs: $2.707

280 pcs: $1.732

560 pcs: $1.678

1120 pcs: $1.57

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.977

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LDZ2817220K-10

Part Number	LDZ2817220K-10	Manufacturer	Laird Technologies
Description	FIXED IND 22UH 16.4A 3MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13105 pcs	Data sheet	LDZ2817220K-10.pdf
Type	Wirewound	Tolerance	±10%
Size / Dimension	1.063" L x 0.669" W (27.00mm x 17.00mm)	Shielding	Shielded
Series	LDZ2817	Ratings	-
Q @ Freq	-	Packaging	Tray
Package / Case	Radial, Vertical, 4 Leads	Other Names	240-2952
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	300kHz	Inductance	22µH
Height - Seated (Max)	0.906" (23.00mm)	Frequency - Self Resonant	-
Detailed Description	22µH Shielded Wirewound Inductor 26A 3 mOhm Max Radial, Vertical, 4 Leads	DC Resistance (DCR)	3 mOhm Max
Current Rating	26A	Current - Saturation	16.4A
