CC2824E105R-10

Laird Technologies

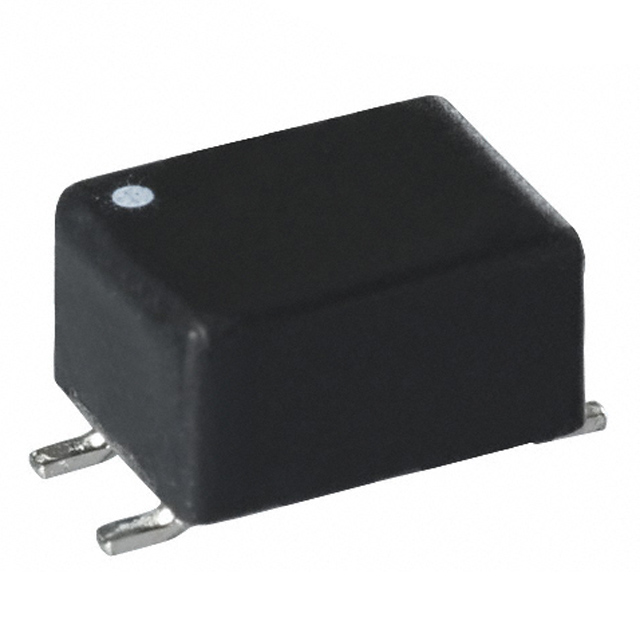

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CC2824E105R-10
Manufacturer/Brand:	Laird Technologies
Product description	CMC 1MH 700MA 2LN 4.25 KOHM SMD
Datasheets:	1.CC2824E105R-10.pdf 2.CC2824E105R-10.pdf 3.CC2824E105R-10.pdf 4.CC2824E105R-10.pdf 5.CC2824E105R-10.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10672 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10672 pcs

Reference Price (In US Dollars)

1 pcs: $2.796

10 pcs: $2.541

100 pcs: $1.728

500 pcs: $1.576

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.796

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CC2824E105R-10

Part Number	CC2824E105R-10	Manufacturer	Laird Technologies
Description	CMC 1MH 700MA 2LN 4.25 KOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10672 pcs	Data sheet	1.CC2824E105R-10.pdf 2.CC2824E105R-10.pdf 3.CC2824E105R-10.pdf 4.CC2824E105R-10.pdf 5.CC2824E105R-10.pdf
Voltage Rating - DC	80V	Voltage Rating - AC	42V
Size / Dimension	0.354" L x 0.217" W (9.00mm x 5.50mm)	Series	CC
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Horizontal, 4 Flat Lead	Other Names	240-2450-1
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1mH @ 100kHz	Impedance @ Frequency	4.25 kOhms @ 7MHz
Height (Max)	0.193" (4.90mm)	Filter Type	Signal Line
Features	-	Detailed Description	1mH @ 100kHz 2 Line Common Mode Choke Surface Mount 4.25 kOhms @ 7MHz 700mA DCR 260 mOhm
DC Resistance (DCR) (Max)	260 mOhm	Current Rating (Max)	700mA
Approvals	-
