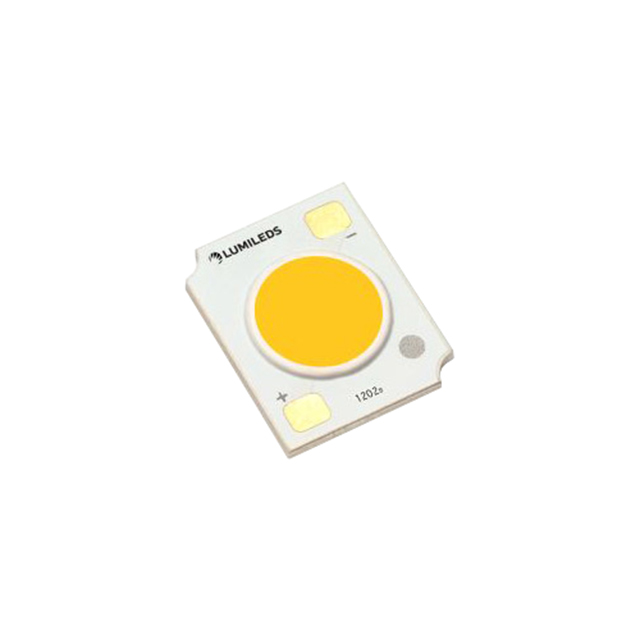

LUMILEDS
| Part Number | L2C1-3590120206A00 | Manufacturer | LUMILEDS |
|---|---|---|---|
| Description | LED COB 3500K 90CRI WARM WHITE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6095 pcs | Data sheet | 1.L2C1-3590120206A00.pdf2.L2C1-3590120206A00.pdf |
| Wavelength | - | Voltage - Forward (Vf) (Typ) | 35.5V |
| Viewing Angle | 115° | Type | Chip On Board (COB) |
| Temperature - Test | 85°C | Size / Dimension | 12.00mm L x 15.00mm W |
| Series | LUXEON CoB | Packaging | Tube |
| Other Names | 1416-1435 L2C1-3590-1202-06A00 L2C1-3590120206A00-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lumens/Watt @ Current - Test | 92 lm/W | Light Emitting Surface (LES) | 6.50mm Diameter |
| Lens Type | Flat | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 1.50mm | Flux @ Current/Temperature - Test | 650 lm (Typ) |
| Features | - | Detailed Description | LED Lighting COBs, Engines, Modules Chip On Board (COB) LUXEON CoB White, Warm Rectangle |
| Current - Test | 200mA | Current - Max | 400mA |
| Configuration | Rectangle | Color | White, Warm |
| CRI (Color Rendering Index) | 90 | CCT (K) | 3500K 3-Step MacAdam Ellipse |
