LEMO
| Part Number | ERN.1S.650.CTL | Manufacturer | LEMO |
|---|---|---|---|
| Description | CONN TRIAX RCPT STR 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3227 pcs | Data sheet | 1.ERN.1S.650.CTL.pdf2.ERN.1S.650.CTL.pdf3.ERN.1S.650.CTL.pdf |
| Shield Termination | Solder | Series | 1S |
| Packaging | Bulk | Other Names | 1124-1242 ERN1S650CTL |
| Operating Temperature | -55°C ~ 250°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 1000 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | IP50 - Dust Protected |

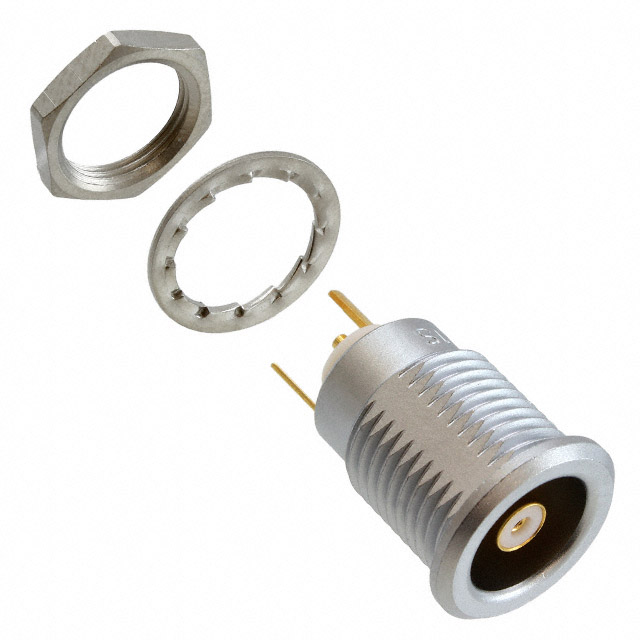

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Features | - |
| Fastening Type | Push-Pull | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Triaxial Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder Cup | Contact Termination | Solder Cup |
| Connector Type | Receptacle, Female Socket | Connector Style | Triaxial |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-174, 178, Belden 9222 | Body Material | Brass |
| Body Finish | Chrome |
