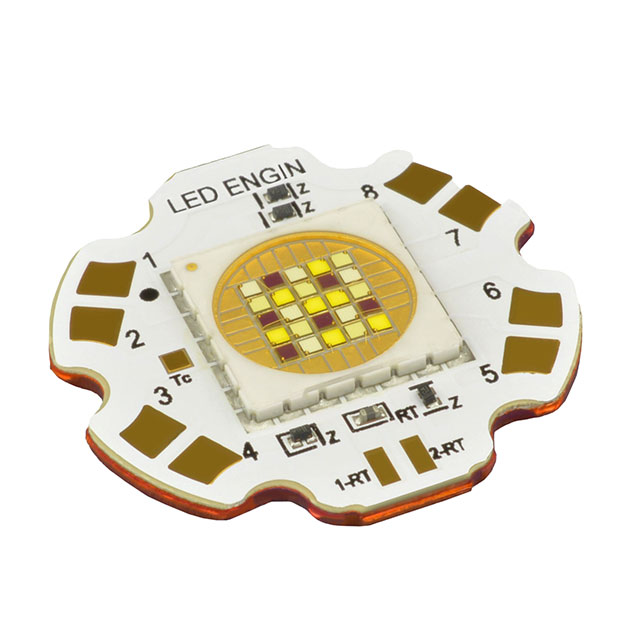

LED Engin
| Part Number | LZP-L4MD00-0000 | Manufacturer | LED Engin |
|---|---|---|---|
| Description | LED RGBW FLAT LENS 4CH MCPCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1877 pcs | Data sheet | LZP-L4MD00-0000.pdf |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue | Voltage - Forward (Vf) (Typ) | 15V Red, 21.6V Green, 19.2V Blue, 22.4V White |
| Viewing Angle | 120° | Type | LED Module |
| Temperature - Test | 25°C | Size / Dimension | 27.60mm Diameter |
| Series | - | Packaging | - |
| Other Names | 1537-1144 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lumens/Watt @ Current - Test | 47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W |
| Light Emitting Surface (LES) | 11.70mm L x 11.70mm W | Lens Type | Flat |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 2.80mm |
| Flux @ Current/Temperature - Test | 493 lm Red, 800 lm Green, 170 lm Blue, 1453 lm White | Features | - |
| Detailed Description | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool Starboard | Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White | Configuration | Starboard |
| Color | Red, Green, Blue, White - Cool | CRI (Color Rendering Index) | 75 (Typ) |
| CCT (K) | 6450K |
