LED Engin

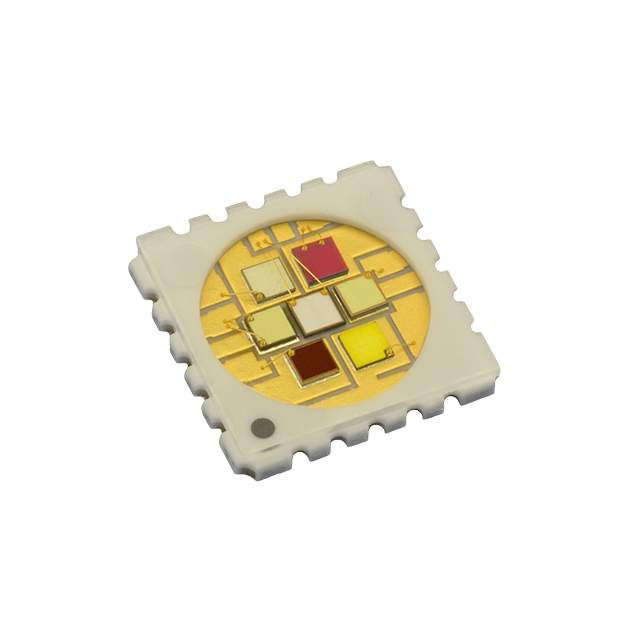

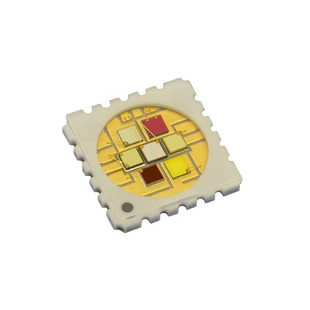

| Part Number | LZ7-04M100 | Manufacturer | LED Engin |
|---|---|---|---|
| Description | LED EMITTER MULTI COLOR SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5662 pcs | Data sheet | LZ7-04M100.pdf |
| Wavelength | 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White | Voltage - Forward (Vf) (Typ) | 2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White |
| Viewing Angle | 120° | Thermal Resistance of Package | 1.4°C/W |
| Temperature - Test | 25°C | Supplier Device Package | SMD |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Series | LuxiGen™ |
| Packaging | Tape & Reel (TR) | Package / Case | 2828 (7070 Metric) |
| Other Names | 1537-1183-2 LZ7-04M100-0000 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lumens/Watt @ Current - Test | 39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.044" (1.11mm) | Flux @ Current/Temperature - Test | 70 lm Amber, 33 lm Blue, 101 lm Cyan, 140 lm Green, 80 lm Red, 900mW Violet, 210 lm White |
| Detailed Description | LED Lighting Color LuxiGen™ Amber, Blue, Cyan, Green, Red, Violet, White - Cool 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 2828 (7070 Metric) | Current - Test | 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White |
| Current - Max | 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White | Color | Amber, Blue, Cyan, Green, Red, Violet, White - Cool |
