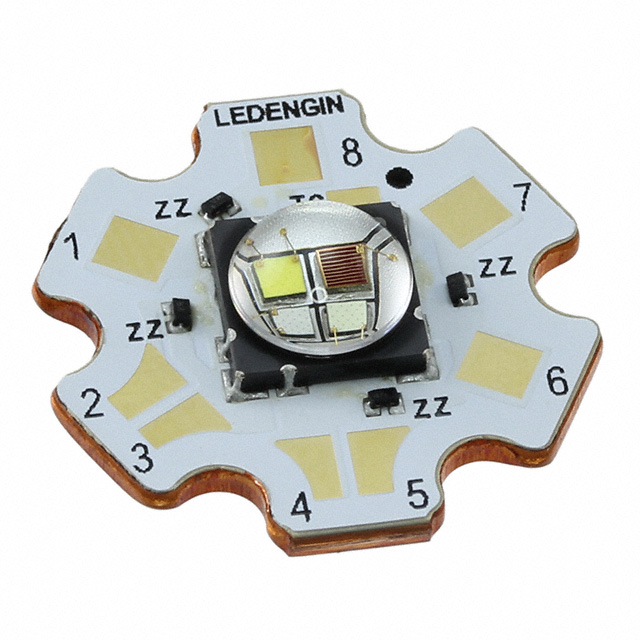

LED Engin
| Part Number | LZ4-V0MD0C-0000 | Manufacturer | LED Engin |
|---|---|---|---|
| Description | LED DOME RGBW 4CH CLEAR MCPCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4325 pcs | Data sheet | LZ4-V0MD0C-0000.pdf |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue | Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Viewing Angle | 95° | Type | LED Module |
| Temperature - Test | 25°C | Size / Dimension | 19.90mm Diameter |
| Series | - | Packaging | - |
| Other Names | 1537-1151-1 1537-1151-1-ND 1537-1159 1537-1159-1 1537-1159-1-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lumens/Watt @ Current - Test | 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White |
| Light Emitting Surface (LES) | 6.50mm Diameter | Lens Type | Domed |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 5.40mm |
| Flux @ Current/Temperature - Test | 133 lm Red, 160 lm Green, 33 lm Blue, 234 lm White | Features | - |
| Detailed Description | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool Starboard | Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White | Configuration | Starboard |
| Color | Red, Green, Blue, White - Cool | CRI (Color Rendering Index) | 75 (Typ) |
| CCT (K) | 6335K |
