VS5V0BA1EST15R

LAPIS Semiconductor

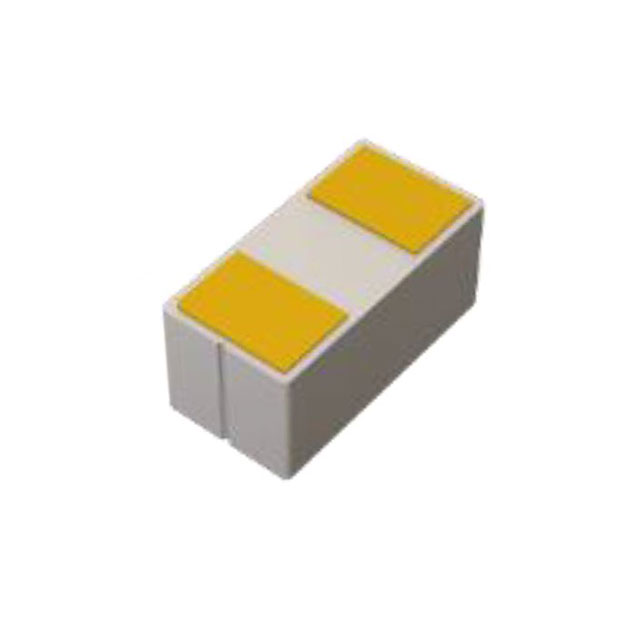

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VS5V0BA1EST15R
Manufacturer/Brand:	LAPIS Semiconductor
Product description	TVS DIODE 5V 10V DSN0603-2
Datasheets:	1.VS5V0BA1EST15R.pdf 2.VS5V0BA1EST15R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	365638 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 365638 pcs

Reference Price (In US Dollars)

1 pcs: $0.087

10 pcs: $0.078

25 pcs: $0.056

100 pcs: $0.044

250 pcs: $0.028

500 pcs: $0.023

1000 pcs: $0.016

2500 pcs: $0.014

5000 pcs: $0.013

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.087

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VS5V0BA1EST15R

Part Number	VS5V0BA1EST15R	Manufacturer	LAPIS Semiconductor
Description	TVS DIODE 5V 10V DSN0603-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	365638 pcs	Data sheet	1.VS5V0BA1EST15R.pdf 2.VS5V0BA1EST15R.pdf
Voltage - Reverse Standoff (Typ)	5V (Max)	Voltage - Clamping (Max) @ Ipp	10V
Voltage - Breakdown (Min)	6V	Type	Zener
Supplier Device Package	DSN0603-2, SOD-962, SMD0603	Series	-
Power Line Protection	No	Power - Peak Pulse	10W
Packaging	Cut Tape (CT)	Package / Case	0201 (0603 Metric)
Other Names	VS5V0BA1EST15RCT	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	1A (8/20µs)	Capacitance @ Frequency	-
Bidirectional Channels	1	Applications	General Purpose
