LAPIS Semiconductor

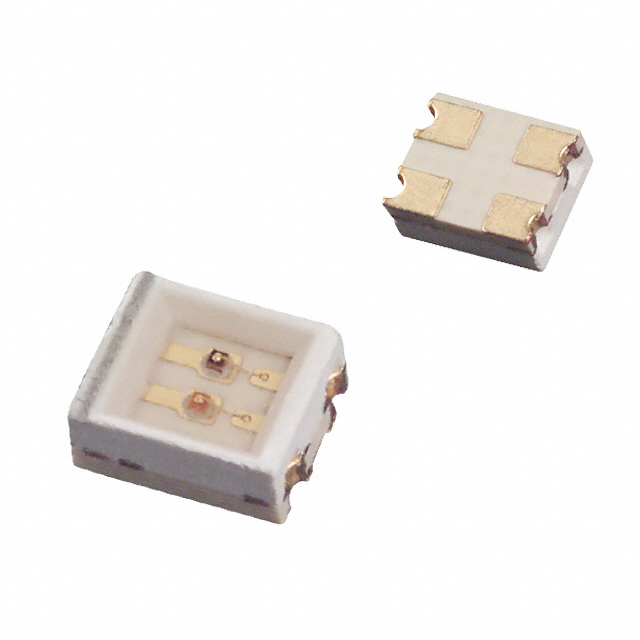

| Part Number | SML022BUTT86 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED BLUE/RED CLEAR 1210 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 167121 pcs | Data sheet | SML022BUTT86.pdf |
| Wavelength - Peak | - | Wavelength - Dominant | 470nm Blue, 624nm Red |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 2V Red | Viewing Angle | - |
| Supplier Device Package | 1210 (3025 Metric) | Size / Dimension | 3.00mm L x 2.50mm W |
| Series | SML-02 | Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) | Other Names | 511-1613-2 SML022BUTT86R SML022BUTT86RS SML022BUTT86RT SML022BUTT86RU SML022BUTT86SS SML022BUTT86SS (SS-TU) SML022BUTT86ST SML022BUTT86SU SML022BUTT86TS SML022BUTT86TT SML022BUTT86TU |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Millicandela Rating | 140mcd Blue, 220mcd Red | Lens Transparency | Clear |
| Lens Style/Size | Rectangle with Flat Top, 2.30mm x 2.10mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.50mm |
| Features | - | Detailed Description | Blue, Red 470nm Blue, 624nm Red LED Indication - Discrete 3.2V Blue, 2V Red 1210 (3225 Metric) |
| Current - Test | 20mA Blue, 20mA Red | Configuration | Independent |
| Color | Blue, Red | Base Part Number | SML-02 |
