LAPIS Semiconductor

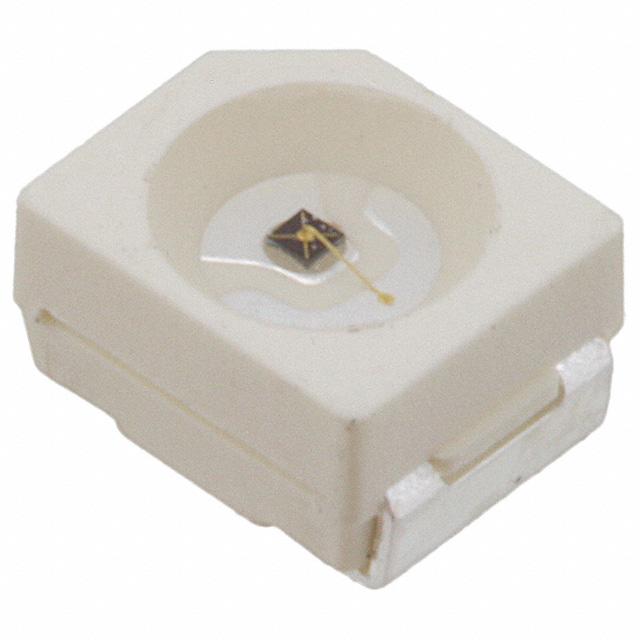

| Part Number | SML-Z14U4TT86 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RED CLEAR 2PLCC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 441162 pcs | Data sheet | SML-Z14U4TT86.pdf |
| Wavelength - Peak | - | Wavelength - Dominant | 620nm |
| Voltage - Forward (Vf) (Typ) | 2V | Viewing Angle | - |
| Supplier Device Package | 2-PLCC | Size / Dimension | 3.20mm L x 2.80mm W |
| Series | SML-Z1 | Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC | Other Names | 846-1045-2 S9L-Z14U4TT86AX (AX-BB) SML-Z14U4TT86-ND SML-Z14U4TT86AX SML-Z14U4TT86AY SML-Z14U4TT86AZ SML-Z14U4TT86BA SML-Z14U4TT86BB SMLZ14U4TT86 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Millicandela Rating | 560mcd | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 2.40mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.05mm |
| Features | - | Detailed Description | Red 620nm LED Indication - Discrete 2V 2-PLCC |
| Current - Test | 50mA | Configuration | Standard |
| Color | Red | Base Part Number | SML-Z14 |
