SML-D22MUWT86

LAPIS Semiconductor

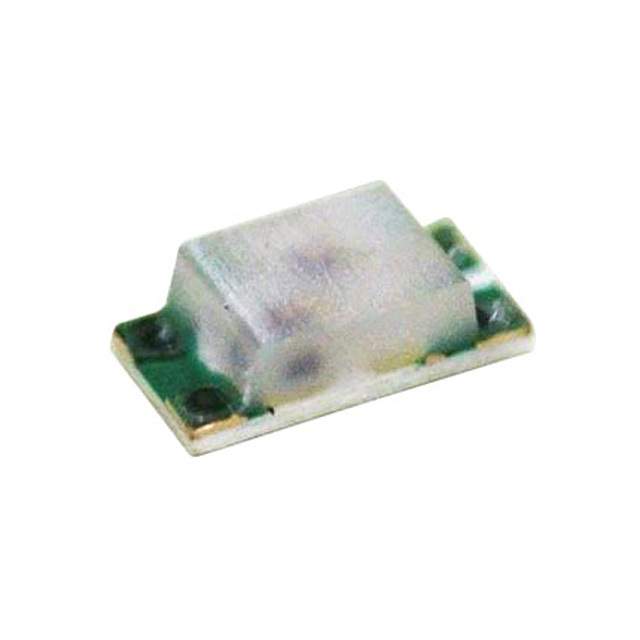

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SML-D22MUWT86
Manufacturer/Brand:	LAPIS Semiconductor
Product description	LED RED/YELLOW-GREEN 1608 SMD
Datasheets:	SML-D22MUWT86.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	730899 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 730899 pcs

Reference Price (In US Dollars)

3000 pcs: $0.052

6000 pcs: $0.047

15000 pcs: $0.044

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.052

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SML-D22MUWT86

Part Number	SML-D22MUWT86	Manufacturer	LAPIS Semiconductor
Description	LED RED/YELLOW-GREEN 1608 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	730899 pcs	Data sheet	SML-D22MUWT86.pdf
Wavelength - Peak	-	Wavelength - Dominant	620nm Red, 570nm Yellow-Green
Voltage - Forward (Vf) (Typ)	1.9V Red, 2V Yellow-Green	Viewing Angle	-
Supplier Device Package	1608 (0603)	Size / Dimension	1.60mm L x 0.80mm W
Series	SML-D22	Packaging	Tape & Reel (TR)
Package / Case	0603 (1608 Metric)	Other Names	SML-D22MUWT86LM SML-D22MUWT86TR
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	16mcd Red, 10mcd Yellow-Green	Manufacturer Standard Lead Time	10 Weeks
Lens Transparency	-	Lens Style/Size	Rectangle with Flat Top, 1.20mm x 0.80mm
Lens Color	White	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.65mm	Features	-
Detailed Description	Red, Yellow-Green 620nm Red, 570nm Yellow-Green LED Indication - Discrete 1.9V Red, 2V Yellow-Green 0603 (1608 Metric)	Current - Test	5mA Red, 5mA Yellow-Green
Configuration	Independent	Color	Red, Yellow-Green
