SCT2750NYTB

LAPIS Semiconductor

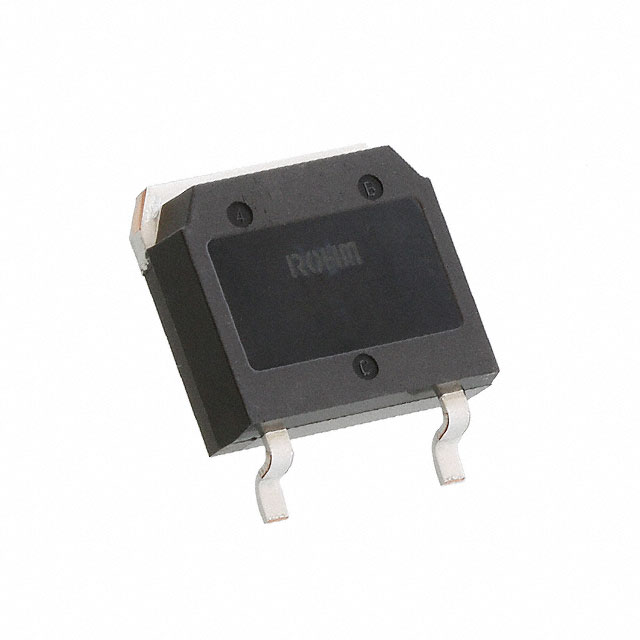

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SCT2750NYTB
Manufacturer/Brand:	LAPIS Semiconductor
Product description	1700V .75 OHM 6A SIC FET
Datasheets:	1.SCT2750NYTB.pdf 2.SCT2750NYTB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12504 pcs

Reference Price (In US Dollars)

1 pcs: $2.792

10 pcs: $2.493

25 pcs: $2.243

100 pcs: $2.044

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.792

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SCT2750NYTB

Part Number	SCT2750NYTB	Manufacturer	LAPIS Semiconductor
Description	1700V .75 OHM 6A SIC FET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12504 pcs	Data sheet	1.SCT2750NYTB.pdf 2.SCT2750NYTB.pdf
Vgs(th) (Max) @ Id	4V @ 630µA	Vgs (Max)	+22V, -6V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-268
Series	-	Rds On (Max) @ Id, Vgs	975 mOhm @ 1.7A, 18V
Power Dissipation (Max)	57W (Tc)	Packaging	Cut Tape (CT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	Other Names	SCT2750NYTBCT
Operating Temperature	175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	275pF @ 800V	Gate Charge (Qg) (Max) @ Vgs	17nC @ 18V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	18V	Drain to Source Voltage (Vdss)	1700V
Detailed Description	N-Channel 1700V 5.9A (Tc) 57W (Tc) Surface Mount TO-268	Current - Continuous Drain (Id) @ 25°C	5.9A (Tc)
