RSY200N05TL

LAPIS Semiconductor

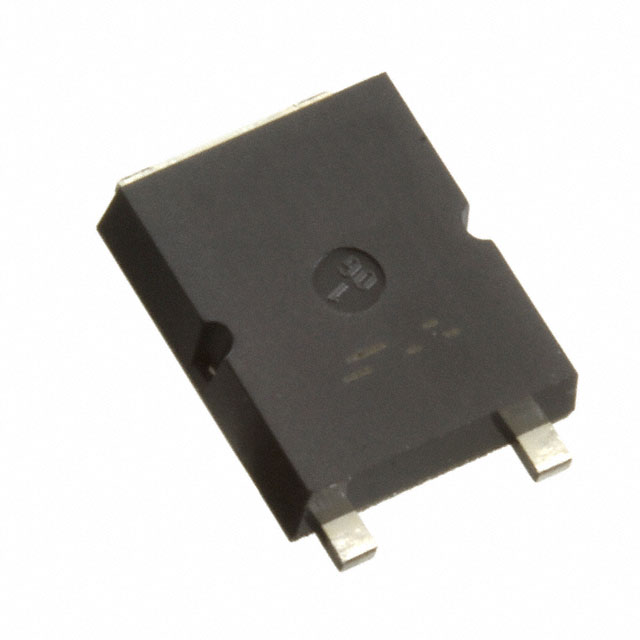

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RSY200N05TL
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET N-CH 45V 20A TCPT3
Datasheets:	RSY200N05TL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	156453 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 156453 pcs

Reference Price (In US Dollars)

2500 pcs: $0.215

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.215

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RSY200N05TL

Part Number	RSY200N05TL	Manufacturer	LAPIS Semiconductor
Description	MOSFET N-CH 45V 20A TCPT3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	156453 pcs	Data sheet	RSY200N05TL.pdf
Vgs(th) (Max) @ Id	-	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TCPT3
Series	-	Rds On (Max) @ Id, Vgs	-
Power Dissipation (Max)	20W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	3-SMD, Flat Leads	Other Names	RSY200N05TLTR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	45V
Detailed Description	N-Channel 45V 20A (Ta) 20W (Ta) Surface Mount TCPT3	Current - Continuous Drain (Id) @ 25°C	20A (Ta)
