RRR030P03TL

LAPIS Semiconductor

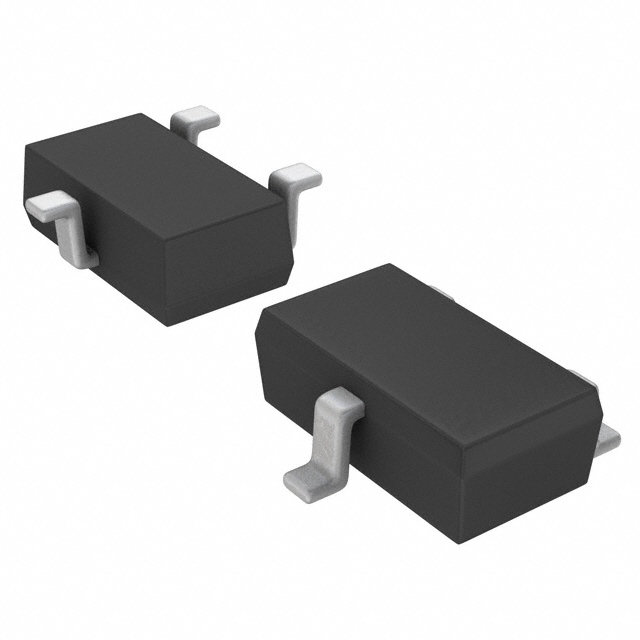

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RRR030P03TL
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET P-CH 30V 3A TSMT3
Datasheets:	RRR030P03TL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	444534 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 444534 pcs

Reference Price (In US Dollars)

3000 pcs: $0.073

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.073

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RRR030P03TL

Part Number	RRR030P03TL	Manufacturer	LAPIS Semiconductor
Description	MOSFET P-CH 30V 3A TSMT3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	444534 pcs	Data sheet	RRR030P03TL.pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TSMT3
Series	-	Rds On (Max) @ Id, Vgs	75 mOhm @ 3A, 10V
Power Dissipation (Max)	1W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	SC-96	Other Names	RRR030P03TLTR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	480pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	5.2nC @ 5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	P-Channel 30V 3A (Ta) 1W (Ta) Surface Mount TSMT3	Current - Continuous Drain (Id) @ 25°C	3A (Ta)
