RRL025P03TR

LAPIS Semiconductor

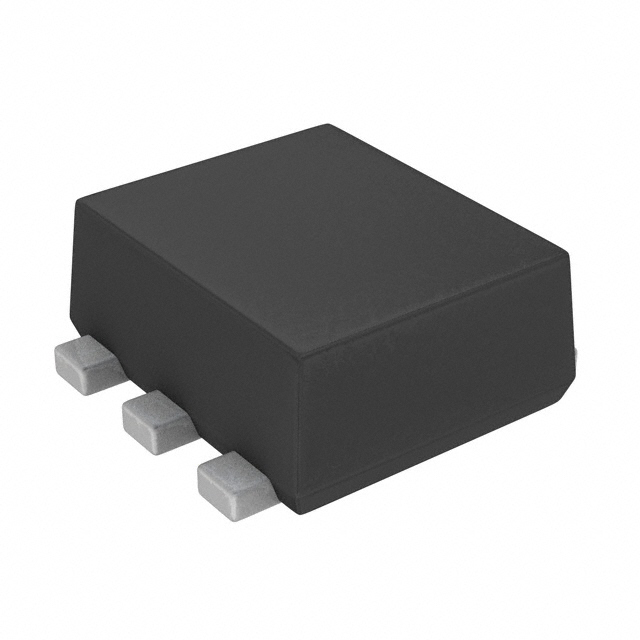

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RRL025P03TR
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET P-CH 30V 2.5A TUMT6
Datasheets:	1.RRL025P03TR.pdf 2.RRL025P03TR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	349646 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 349646 pcs

Reference Price (In US Dollars)

3000 pcs: $0.093

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.093

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RRL025P03TR

Part Number	RRL025P03TR	Manufacturer	LAPIS Semiconductor
Description	MOSFET P-CH 30V 2.5A TUMT6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	349646 pcs	Data sheet	1.RRL025P03TR.pdf 2.RRL025P03TR.pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TUMT6
Series	-	Rds On (Max) @ Id, Vgs	75 mOhm @ 2.5A, 10V
Power Dissipation (Max)	320mW (Ta)	Packaging	Tape & Reel (TR)
Package / Case	6-SMD, Flat Leads	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	480pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	5.2nC @ 5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	P-Channel 30V 2.5A (Ta) 320mW (Ta) Surface Mount TUMT6	Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)

Shipment
After-Sales
Datasheets

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX	www.FedEx.com	From $35.00 basic shipping fee depend on zone and country.
DHL	www.DHL.com	From $35.00 basic shipping fee depend on zone and country.
UPS	www.UPS.com	From $35.00 basic shipping fee depend on zone and country.
TNT	www.TNT.com	From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]

AFTER-SALES GUARANTEE

Each product from Infinite-Electronics.net has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.
