RGTH40TS65GC11

LAPIS Semiconductor

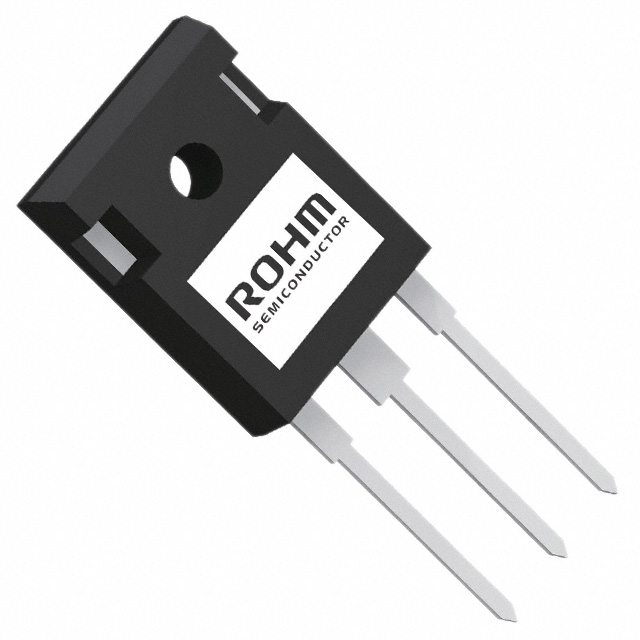

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RGTH40TS65GC11
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IGBT 650V 40A 144W TO-247N
Datasheets:	1.RGTH40TS65GC11.pdf 2.RGTH40TS65GC11.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41474 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41474 pcs

Reference Price (In US Dollars)

1 pcs: $0.881

10 pcs: $0.797

25 pcs: $0.711

100 pcs: $0.64

250 pcs: $0.569

500 pcs: $0.498

1000 pcs: $0.412

2500 pcs: $0.384

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.881

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RGTH40TS65GC11

Part Number	RGTH40TS65GC11	Manufacturer	LAPIS Semiconductor
Description	IGBT 650V 40A 144W TO-247N	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41474 pcs	Data sheet	1.RGTH40TS65GC11.pdf 2.RGTH40TS65GC11.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 20A
Test Condition	400V, 20A, 10 Ohm, 15V	Td (on/off) @ 25°C	22ns/73ns
Switching Energy	-	Supplier Device Package	TO-247N
Series	-	Power - Max	144W
Packaging	Tube	Package / Case	TO-247-3
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Trench Field Stop	Gate Charge	40nC
Detailed Description	IGBT Trench Field Stop 650V 40A 144W Through Hole TO-247N	Current - Collector Pulsed (Icm)	80A
Current - Collector (Ic) (Max)	40A
