RB238T100HZC9

LAPIS SemiconductorLAPIS Semiconductor

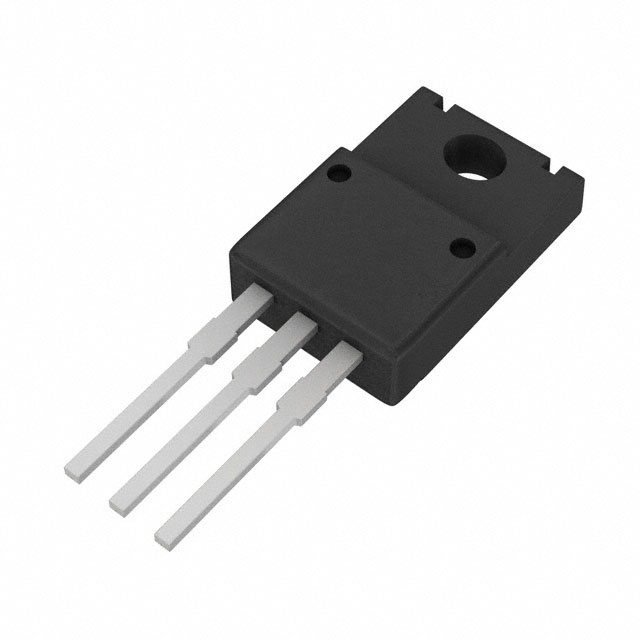

RB238T100HZC9 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RB238T100HZC9
Manufacturer/Brand: LAPIS Semiconductor
Product description SCHOTTKY BARRIER DIODE (AEC-Q101
Datasheets: 1.RB238T100HZC9.pdf2.RB238T100HZC9.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 42597 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 42597 pcs
Reference Price (In US Dollars)
1 pcs
$0.773
10 pcs
$0.70
100 pcs
$0.562
500 pcs
$0.437
1000 pcs
$0.362
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.773

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RB238T100HZC9

Part Number RB238T100HZC9 Manufacturer LAPIS Semiconductor
Description SCHOTTKY BARRIER DIODE (AEC-Q101 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 42597 pcs Data sheet 1.RB238T100HZC9.pdf2.RB238T100HZC9.pdf
Voltage - Forward (Vf) (Max) @ If 860mV @ 20A Voltage - DC Reverse (Vr) (Max) 100V
Supplier Device Package TO-220FN Speed Fast Recovery = 200mA (Io)
Series Automotive, AEC-Q101 Reverse Recovery Time (trr) 24.7ns
Packaging Original-Reel® Package / Case TO-220-3 Full Pack
Operating Temperature - Junction 150°C (Max) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 10 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Diode Type Schottky
Diode Configuration 1 Pair Common Cathode Detailed Description Diode Array 1 Pair Common Cathode Schottky 100V 40A Through Hole TO-220-3 Full Pack
Current - Reverse Leakage @ Vr 20µA @ 100V Current - Average Rectified (Io) (per Diode) 40A
