LAPIS Semiconductor
| Part Number | RAF040P01TCL | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 12V 4A TUMT3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 488657 pcs | Data sheet | 1.RAF040P01TCL.pdf2.RAF040P01TCL.pdf3.RAF040P01TCL.pdf4.RAF040P01TCL.pdf5.RAF040P01TCL.pdf |
| Vgs(th) (Max) @ Id | 1V @ 1mA | Vgs (Max) | -8V |

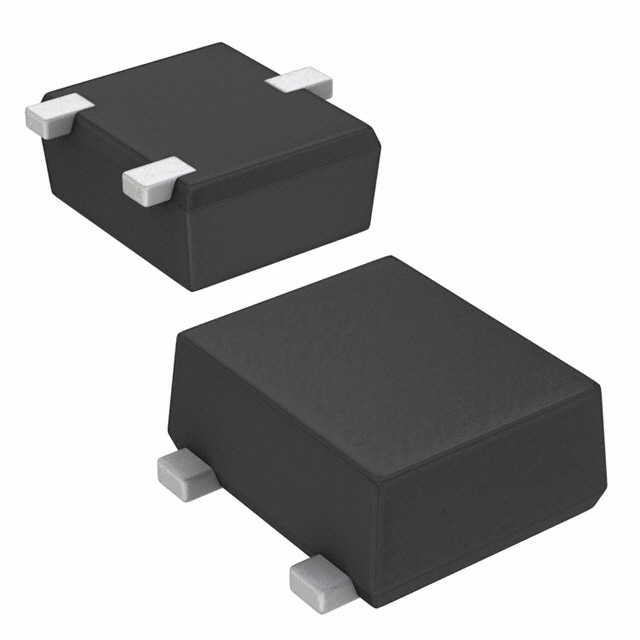

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TUMT3 |
| Series | - | Rds On (Max) @ Id, Vgs | 30 mOhm @ 4A, 4.5V |
| Power Dissipation (Max) | 800mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, Flat Leads | Other Names | RAF040P01TCL-ND RAF040P01TCLTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4000pF @ 6V |
| Gate Charge (Qg) (Max) @ Vgs | 37nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 12V | Detailed Description | P-Channel 12V 4A (Ta) 800mW (Ta) Surface Mount TUMT3 |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
