R6025FNZC8

LAPIS Semiconductor

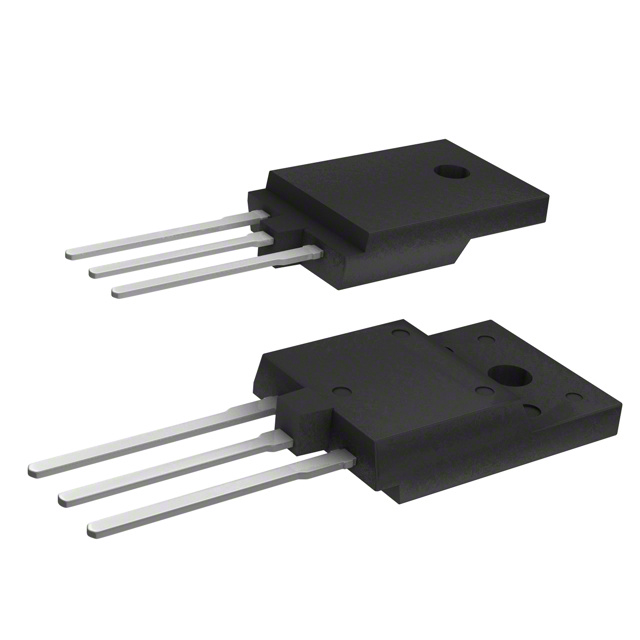

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R6025FNZC8
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET N-CH 600V 25A TO3PF
Datasheets:	R6025FNZC8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15884 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15884 pcs

Reference Price (In US Dollars)

1 pcs: $2.337

10 pcs: $2.088

100 pcs: $1.712

500 pcs: $1.386

1000 pcs: $1.169

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.337

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R6025FNZC8

Part Number	R6025FNZC8	Manufacturer	LAPIS Semiconductor
Description	MOSFET N-CH 600V 25A TO3PF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15884 pcs	Data sheet	R6025FNZC8.pdf
Vgs(th) (Max) @ Id	5V @ 1mA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-3PF
Series	-	Rds On (Max) @ Id, Vgs	180 mOhm @ 12.5A, 10V
Power Dissipation (Max)	150W (Tc)	Packaging	Tube
Package / Case	TO-3P-3 Full Pack	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	3500pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	85nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	600V	Detailed Description	N-Channel 600V 25A (Tc) 150W (Tc) Through Hole TO-3PF
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
