QS5Y1TR

LAPIS Semiconductor

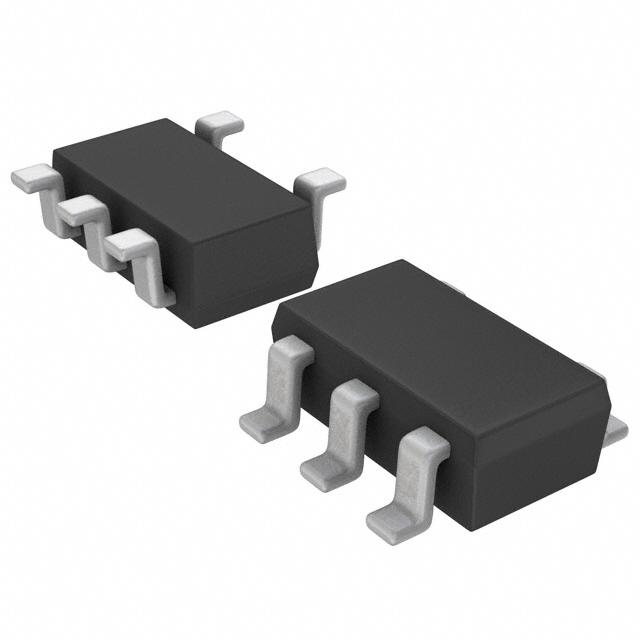

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QS5Y1TR
Manufacturer/Brand:	LAPIS Semiconductor
Product description	TRANS NPN/PNP 30V 3A TSMT5
Datasheets:	1.QS5Y1TR.pdf 2.QS5Y1TR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	115629 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 115629 pcs

Reference Price (In US Dollars)

1 pcs: $0.278

10 pcs: $0.243

100 pcs: $0.188

500 pcs: $0.139

1000 pcs: $0.111

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.278

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QS5Y1TR

Part Number	QS5Y1TR	Manufacturer	LAPIS Semiconductor
Description	TRANS NPN/PNP 30V 3A TSMT5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	115629 pcs	Data sheet	1.QS5Y1TR.pdf 2.QS5Y1TR.pdf
Voltage - Collector Emitter Breakdown (Max)	30V	Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 1A
Transistor Type	NPN, PNP (Emitter Coupled)	Supplier Device Package	TSMT5
Series	-	Power - Max	1.25W
Packaging	Cut Tape (CT)	Package / Case	SOT-23-5 Thin, TSOT-23-5
Other Names	QS5Y1TRCT	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	300MHz, 270MHz
Detailed Description	Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 30V 3A 300MHz, 270MHz 1.25W Surface Mount TSMT5	DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Current - Collector Cutoff (Max)	1µA (ICBO)	Current - Collector (Ic) (Max)	3A
