LAPIS Semiconductor

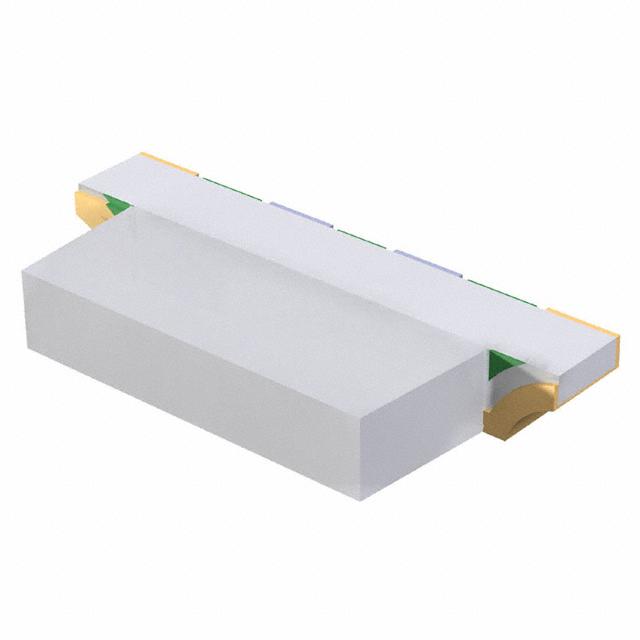

| Part Number | MSL0201RGBW1 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RGB DIFFUSED PICOLED SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157311 pcs | Data sheet | MSL0201RGBW1.pdf |
| Wavelength - Peak | - | Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3V Green, 2.9V Blue | Viewing Angle | - |
| Supplier Device Package | PICOLED | Size / Dimension | 3.00mm L x 1.30mm W |
| Series | PicoLED™ | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | MSL0201RGBW11 MSL0201RGBW12 MSL0201RGBW13 MSL0201RGBW14 MSL0201RGBW15 MSL0201RGBW16 MSL0201RGBW17 MSL0201RGBW18 MSL0201RGBW1TR |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Millicandela Rating | 25mcd Red, 90mcd Green, 22mcd Blue | Lens Transparency | Diffused |
| Lens Style/Size | Rectangle with Flat Top | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.43mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 624nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 2.9V Blue 4-SMD, No Lead |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) | Base Part Number | MSL0201 |
