MNR12ERAPJ560

LAPIS Semiconductor

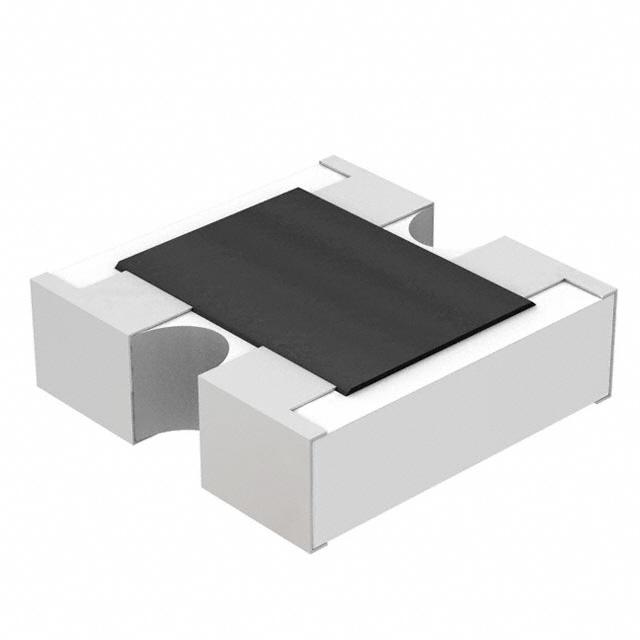

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MNR12ERAPJ560
Manufacturer/Brand:	LAPIS Semiconductor
Product description	RES ARRAY 2 RES 56 OHM 0606
Datasheets:	1.MNR12ERAPJ560.pdf 2.MNR12ERAPJ560.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1025440 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1025440 pcs

Reference Price (In US Dollars)

1 pcs: $0.036

10 pcs: $0.014

25 pcs: $0.01

50 pcs: $0.008

100 pcs: $0.006

250 pcs: $0.004

500 pcs: $0.004

1000 pcs: $0.003

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.036

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MNR12ERAPJ560

Part Number	MNR12ERAPJ560	Manufacturer	LAPIS Semiconductor
Description	RES ARRAY 2 RES 56 OHM 0606	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1025440 pcs	Data sheet	1.MNR12ERAPJ560.pdf 2.MNR12ERAPJ560.pdf
Tolerance	±5%	Temperature Coefficient	±200ppm/°C
Supplier Device Package	-	Size / Dimension	0.063" L x 0.063" W (1.60mm x 1.60mm)
Series	MNR	Resistor-Ratio-Drift	-
Resistor Matching Ratio	-	Resistance (Ohms)	56
Power Per Element	62.5mW	Packaging	Cut Tape (CT)
Package / Case	0606, Convex	Other Names	RHM1398CT
Operating Temperature	-55°C ~ 155°C	Number of Resistors	2
Number of Pins	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.022" (0.55mm)	Detailed Description	56 Ohm ±5% 62.5mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0606, Convex
Circuit Type	Isolated	Applications	-
