LB-302VF

LAPIS Semiconductor

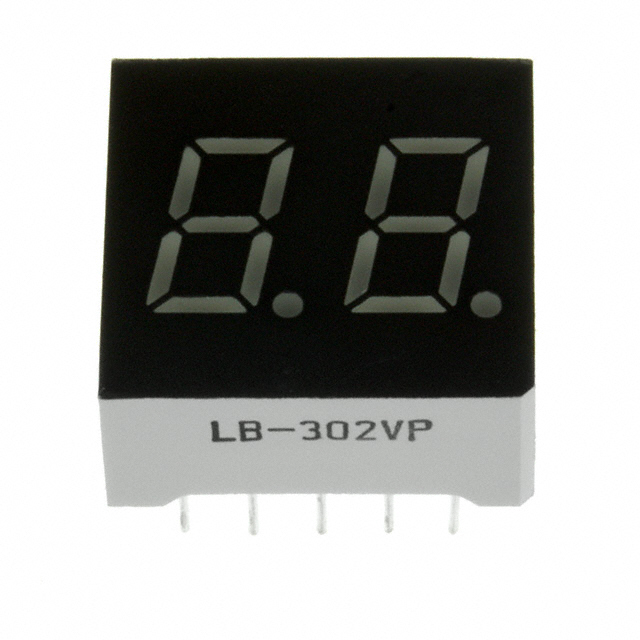

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LB-302VF
Manufacturer/Brand:	LAPIS Semiconductor
Product description	DISPLAY 7SEG 7.62MM 2DGT RED CA
Datasheets:	LB-302VF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29914 pcs

Reference Price (In US Dollars)

500 pcs: $1.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.197

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LB-302VF

Part Number	LB-302VF	Manufacturer	LAPIS Semiconductor
Description	DISPLAY 7SEG 7.62MM 2DGT RED CA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29914 pcs	Data sheet	LB-302VF.pdf
Wavelength - Peak	650nm	Voltage - Forward (Vf) (Typ)	2V
Size / Dimension	0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm)	Series	-
Power Dissipation (Max)	50mW	Packaging	Bulk
Package / Case	10-DIP (0.400", 10.16mm)	Other Names	511-1547 511-1547-ND 846-1124 LB-302VFJ (J-N)
Number of Characters	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	6.3mcd	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Display Type	7-Segment	Digit/Alpha Size	0.30" (7.62mm)
Detailed Description	Character LED Display Module Red 7-Segment 2 Character Common Anode 2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm)	Current - Test	10mA
Common Pin	Common Anode	Color	Red
