BSM120D12P2C005

LAPIS Semiconductor

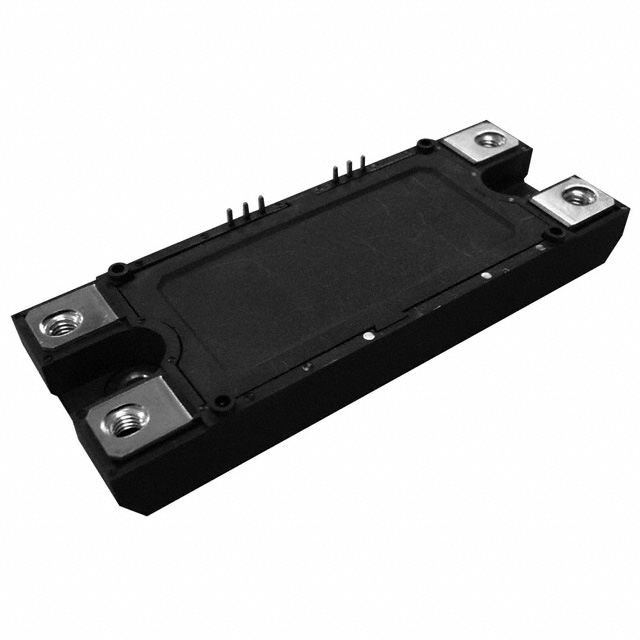

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSM120D12P2C005
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET 2N-CH 1200V 120A MODULE
Datasheets:	1.BSM120D12P2C005.pdf 2.BSM120D12P2C005.pdf 3.BSM120D12P2C005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	214 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 214 pcs

Reference Price (In US Dollars)

1 pcs: $141.267

10 pcs: $134.447

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$141.267

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSM120D12P2C005

Part Number	BSM120D12P2C005	Manufacturer	LAPIS Semiconductor
Description	MOSFET 2N-CH 1200V 120A MODULE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	214 pcs	Data sheet	1.BSM120D12P2C005.pdf 2.BSM120D12P2C005.pdf 3.BSM120D12P2C005.pdf
Vgs(th) (Max) @ Id	2.7V @ 22mA	Supplier Device Package	Module
Series	-	Rds On (Max) @ Id, Vgs	-
Power - Max	780W	Packaging	Bulk
Package / Case	Module	Operating Temperature	-40°C ~ 150°C (TJ)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	14000pF @ 10V
Gate Charge (Qg) (Max) @ Vgs	-	FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)	Drain to Source Voltage (Vdss)	1200V (1.2kV)
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 120A (Tc) 780W Module	Current - Continuous Drain (Id) @ 25°C	120A (Tc)
