BD9D323QWZ-E2

LAPIS Semiconductor

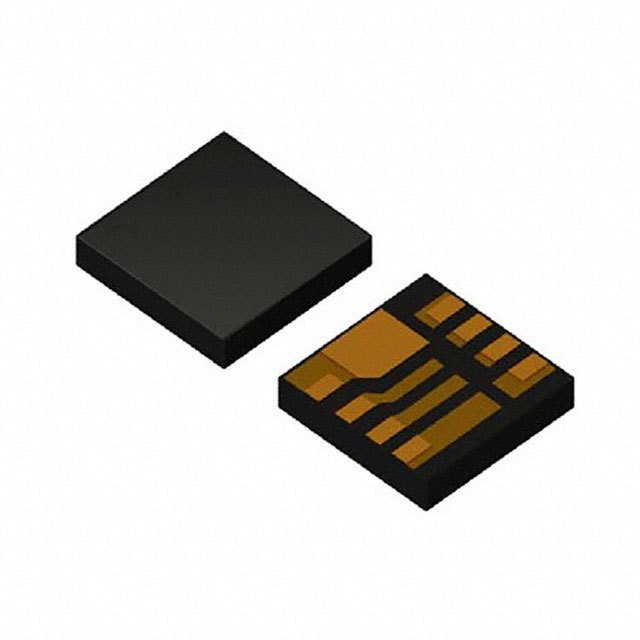

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD9D323QWZ-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	4.5V TO 18V INPUT, 3.0A INTEGRAT
Datasheets:	BD9D323QWZ-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	550262 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 550262 pcs

Reference Price (In US Dollars)

4000 pcs: $0.066

8000 pcs: $0.061

12000 pcs: $0.059

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.066

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD9D323QWZ-E2

Part Number	BD9D323QWZ-E2	Manufacturer	LAPIS Semiconductor
Description	4.5V TO 18V INPUT, 3.0A INTEGRAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	550262 pcs	Data sheet	BD9D323QWZ-E2.pdf
Voltage - Output (Min/Fixed)	0.765V	Voltage - Output (Max)	7V
Voltage - Input (Min)	4.5V	Voltage - Input (Max)	18V
Topology	Buck	Synchronous Rectifier	Yes
Supplier Device Package	UMMP008Z2020	Series	-
Packaging	Tape & Reel (TR)	Package / Case	8-XFDFN Exposed Pad
Output Type	Adjustable	Output Configuration	Positive
Other Names	BD9D323QWZ-E2TR	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Step-Down
Frequency - Switching	700kHz	Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.765V 1 Output 3A 8-XFDFN Exposed Pad
Current - Output	3A
