BD8317GWL-E2

LAPIS Semiconductor

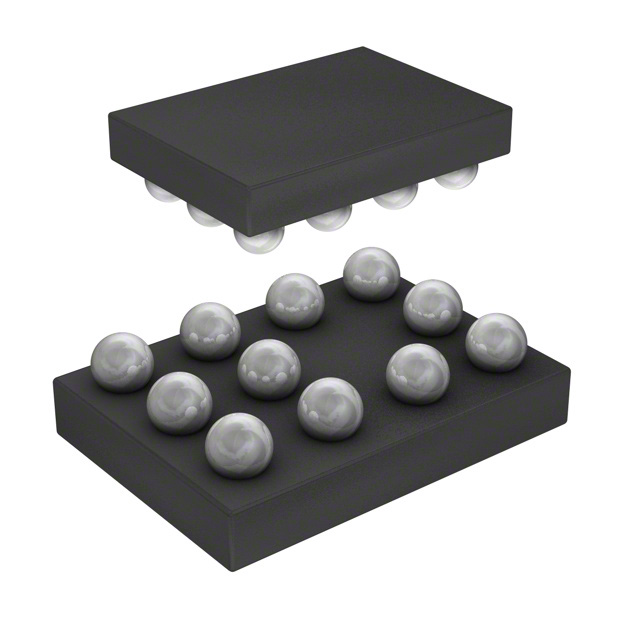

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD8317GWL-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC REG BOOST ADJ A1 SYNC 50WLCSP
Datasheets:	1.BD8317GWL-E2.pdf 2.BD8317GWL-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 50579 pcs

Reference Price (In US Dollars)

1 pcs: $0.629

10 pcs: $0.568

25 pcs: $0.507

100 pcs: $0.456

250 pcs: $0.406

500 pcs: $0.355

1000 pcs: $0.294

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.629

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD8317GWL-E2

Part Number	BD8317GWL-E2	Manufacturer	LAPIS Semiconductor
Description	IC REG BOOST ADJ A1 SYNC 50WLCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50579 pcs	Data sheet	1.BD8317GWL-E2.pdf 2.BD8317GWL-E2.pdf
Voltage - Output (Min/Fixed)	5.5V, -1V	Voltage - Output (Max)	18V, -9V
Voltage - Input (Min)	2.5V	Voltage - Input (Max)	5.5V
Topology	Boost	Synchronous Rectifier	Yes
Supplier Device Package	UCSP50L1	Series	-
Packaging	Original-Reel®	Package / Case	11-UFBGA, WLCSP
Output Type	Adjustable	Output Configuration	Positive and Negative (Dual Rail)
Other Names	BD8317GWL-E2DKR	Operating Temperature	-35°C ~ 85°C (TA)
Number of Outputs	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Up	Frequency - Switching	800kHz
Detailed Description	Boost Switching Regulator IC Positive and Negative (Dual Rail) Adjustable 5.5V, -1V 2 Output 1A (Switch) 11-UFBGA, WLCSP	Current - Output	1A (Switch)
