BD7905BFS-E2

LAPIS Semiconductor

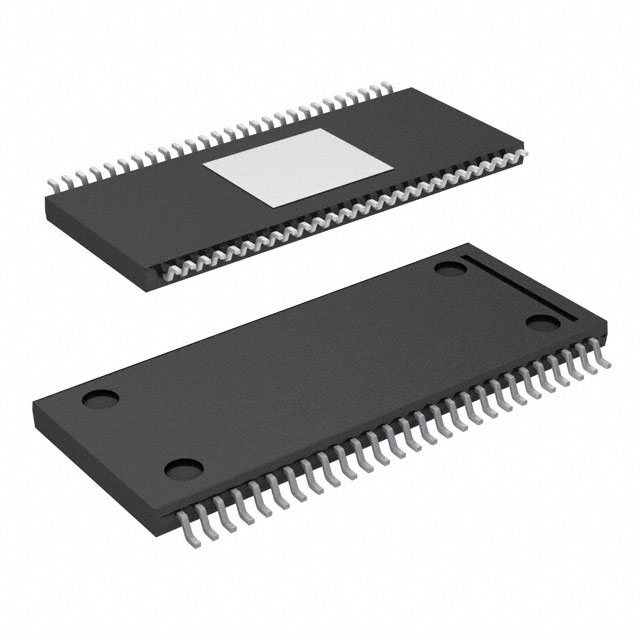

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD7905BFS-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC MOTOR DRIVER PAR 54-HSSOP
Datasheets:	BD7905BFS-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22510 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22510 pcs

Reference Price (In US Dollars)

1000 pcs: $1.532

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.532

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD7905BFS-E2

Part Number	BD7905BFS-E2	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DRIVER PAR 54-HSSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22510 pcs	Data sheet	BD7905BFS-E2.pdf
Voltage - Supply	4.3 V ~ 14 V	Voltage - Load	-
Technology	Bipolar, Power MOSFET	Supplier Device Package	54-SSOPA
Series	-	Rds On (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	54-SOP (0.449", 11.40mm Width) Exposed Pad
Output Configuration	Half Bridge (13)	Other Names	BD7905BFSE2
Operating Temperature	-40°C ~ 85°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	-
Fault Protection	Current Limiting, Over Temperature	Detailed Description	Half Bridge (13) Driver DC Motors, General Purpose Bipolar, Power MOSFET 54-SSOPA
Current - Peak Output	-	Current - Output / Channel	800mA, 2.5A
Base Part Number	BD7905	Applications	DC Motors, General Purpose
