BD6643KN-E2

LAPIS Semiconductor

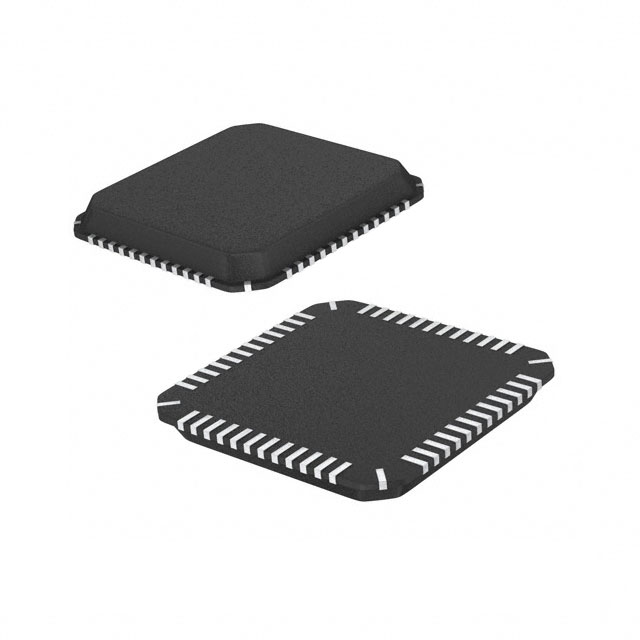

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD6643KN-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC MOTOR DRIVER PAR 48-UQFN
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14150 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14150 pcs

Reference Price (In US Dollars)

2500 pcs: $2.706

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.706

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD6643KN-E2

Part Number	BD6643KN-E2	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DRIVER PAR 48-UQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14150 pcs	Data sheet
Voltage - Supply	2.1 V ~ 6.5 V	Voltage - Load	3 V ~ 13 V
Technology	DMOS	Supplier Device Package	48-UQFN (7.2x7.2)
Step Resolution	-	Series	-
Packaging	Tape & Reel (TR)	Package / Case	48-VFQFN
Output Configuration	Half Bridge (10)	Other Names	BD6643KNE2
Operating Temperature	-25°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushless DC (BLDC), Brushed DC
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Motor Driver DMOS Parallel 48-UQFN (7.2x7.2)	Current - Output	500mA
Base Part Number	BD6643	Applications	General Purpose
