BD6385EFV-E2

LAPIS Semiconductor

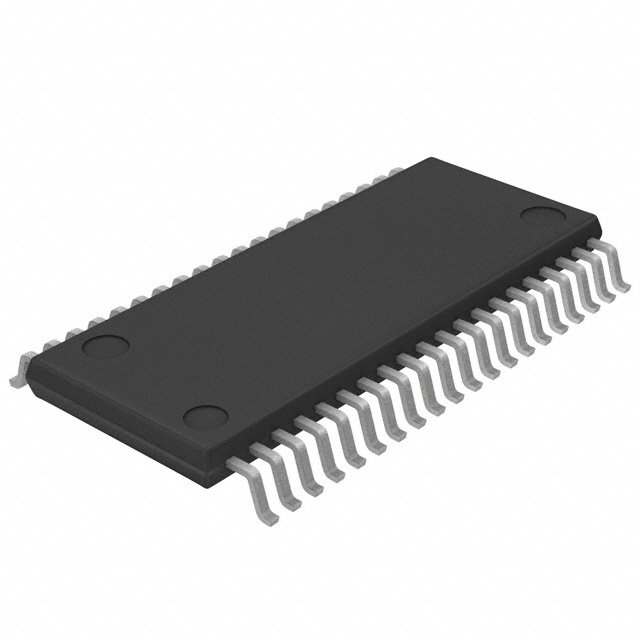

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD6385EFV-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC MOTOR DRIVER SER 40HTSSOP
Datasheets:	1.BD6385EFV-E2.pdf 2.BD6385EFV-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25210 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25210 pcs

Reference Price (In US Dollars)

2000 pcs: $1.391

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.391

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD6385EFV-E2

Part Number	BD6385EFV-E2	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DRIVER SER 40HTSSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25210 pcs	Data sheet	1.BD6385EFV-E2.pdf 2.BD6385EFV-E2.pdf
Voltage - Supply	10 V ~ 28 V	Voltage - Load	10 V ~ 28 V
Technology	DMOS	Supplier Device Package	40-HTSSOP-B
Step Resolution	1, 1/2, 1/4	Series	-
Packaging	Tape & Reel (TR)	Package / Case	40-VSSOP (0.213", 5.40mm Width) Exposed Pad
Output Configuration	Half Bridge (4)	Other Names	BD6385EFV-E2TR BD6385EFVE2
Operating Temperature	-25°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Bipolar Motor Driver DMOS Parallel 40-HTSSOP-B
Current - Output	1.2A	Base Part Number	BD638*
Applications	General Purpose
