2SD1758TLR

LAPIS Semiconductor

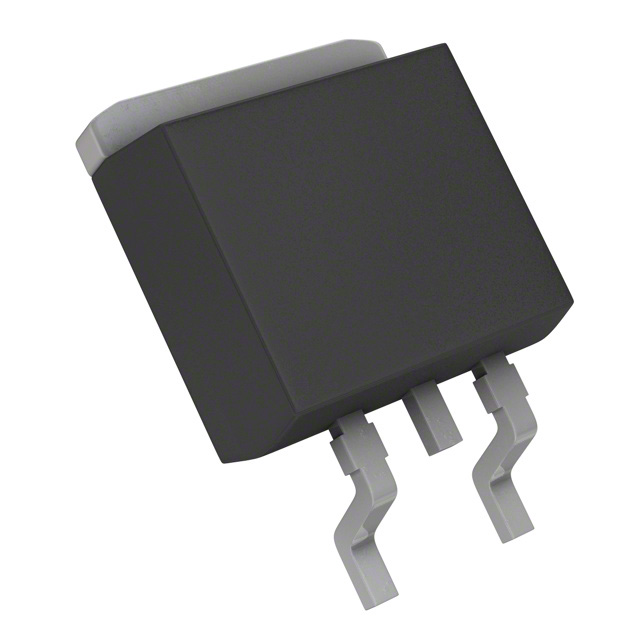

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SD1758TLR
Manufacturer/Brand:	LAPIS Semiconductor
Product description	TRANS NPN 32V 2A SOT-428
Datasheets:	2SD1758TLR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	138667 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 138667 pcs

Reference Price (In US Dollars)

1 pcs: $0.275

10 pcs: $0.241

25 pcs: $0.213

100 pcs: $0.186

250 pcs: $0.162

500 pcs: $0.138

1000 pcs: $0.11

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.275

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SD1758TLR

Part Number	2SD1758TLR	Manufacturer	LAPIS Semiconductor
Description	TRANS NPN 32V 2A SOT-428	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	138667 pcs	Data sheet	2SD1758TLR.pdf
Voltage - Collector Emitter Breakdown (Max)	32V	Vce Saturation (Max) @ Ib, Ic	800mV @ 200mA, 2A
Transistor Type	NPN	Supplier Device Package	CPT3
Series	-	Power - Max	10W
Packaging	Original-Reel®	Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Other Names	2SD1758TLRDKR	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	100MHz
Detailed Description	Bipolar (BJT) Transistor NPN 32V 2A 100MHz 10W Surface Mount CPT3	DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 500mA, 3V
Current - Collector Cutoff (Max)	1µA (ICBO)	Current - Collector (Ic) (Max)	2A
Base Part Number	2SD1758
