DMC-16230NY-LY-DZE-EEN

Kyocera DisplayKyocera Display

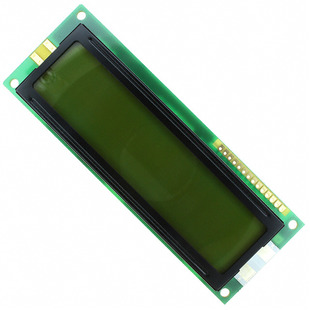

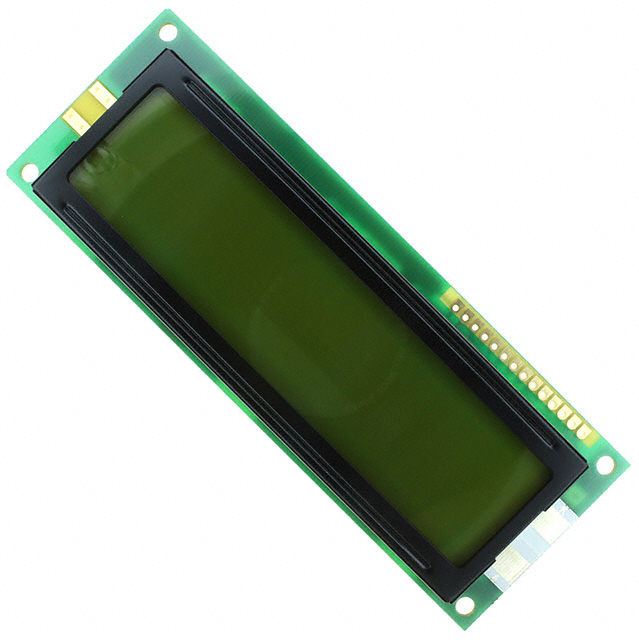

DMC-16230NY-LY-DZE-EEN Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: DMC-16230NY-LY-DZE-EEN
Manufacturer/Brand: Kyocera Display
Product description LCD MODULE 16X2 CHARACTER
Datasheets: DMC-16230NY-LY-DZE-EEN.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3653 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3653 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of DMC-16230NY-LY-DZE-EEN

Part Number DMC-16230NY-LY-DZE-EEN Manufacturer Kyocera Display
Description LCD MODULE 16X2 CHARACTER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3653 pcs Data sheet DMC-16230NY-LY-DZE-EEN.pdf
Voltage - Supply 4.5 V ~ 5.5 V Viewing Area 99.00mm L x 24.00mm W
Text Color Yellow Series DMC-16230
Outline L x W x H 122.00mm x 44.00mm x 14.60mm Other Names 73-1297
Operating Temperature 0°C ~ 50°C Number of Characters 32
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Interface Parallel Dot Size 0.92mm W x 1.10mm H
Display Type STN - Super-Twisted Nematic Display Mode Transmissive
Display Format 16 x 2 Detailed Description Character LCD Display Module Transmissive 5 x 7 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 122.00mm x 44.00mm x 14.60mm
Character Size 9.66mm H x 4.84mm W Character Format 5 x 7 Dots
Backlight LED - Yellow/Green Background Color Green
