Knowles

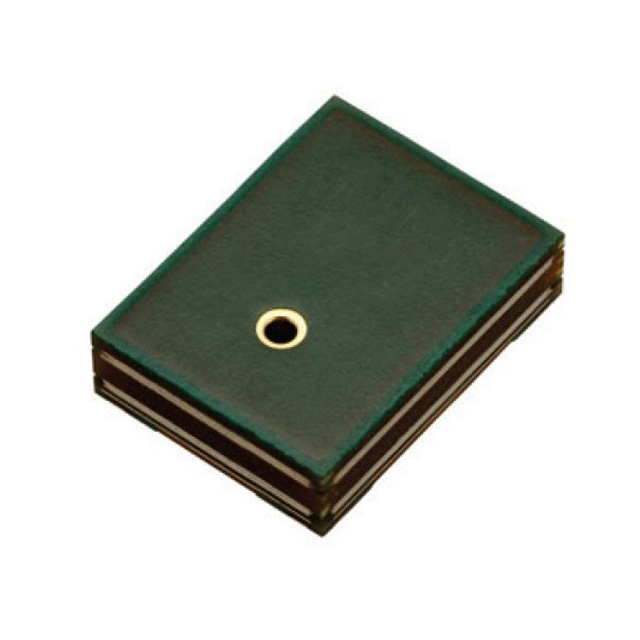

| Part Number | SPK0641HT4H-1 | Manufacturer | Knowles |
|---|---|---|---|
| Description | SILICON DIGITAL MICROPHONE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142141 pcs | Data sheet | SPK0641HT4H-1.pdf |
| Voltage Range | 1.6V ~ 3.6V | Type | MEMS (Silicon) |
| Termination | Solder Pads | Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Shape | Rectangular | Series | SiSonic™ SPK |
| Sensitivity | -26dB ±1dB @ 94dB SPL | S/N Ratio | 64.5dB |
| Ratings | - | Port Location | Top |
| Packaging | Tape & Reel (TR) | Output Type | Digital, PDM |
| Other Names | 423-1425-2 RAMIS SPK0641HT4W-1-7 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.043" (1.10mm) | Frequency Range | 20Hz ~ 10kHz |
| Direction | Omnidirectional | Detailed Description | 20Hz ~ 10kHz Digital, PDM Microphone MEMS (Silicon) 1.6V ~ 3.6V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads |
| Current - Supply | 800µA |
