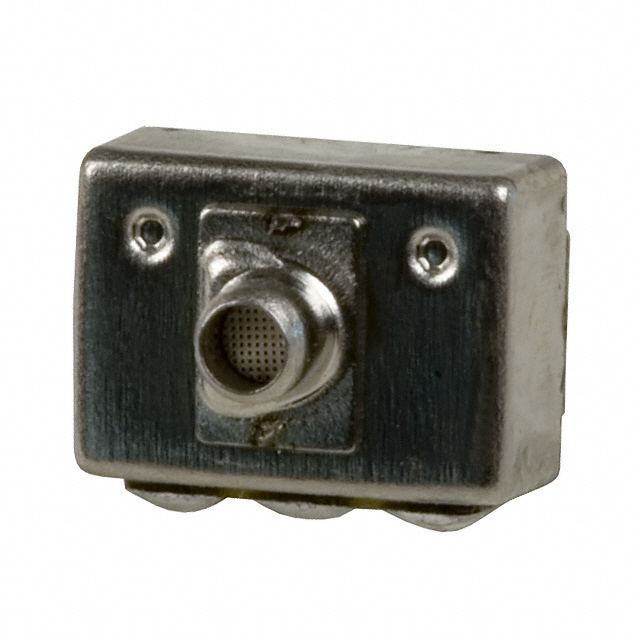

Knowles
| Part Number | EK-23027 | Manufacturer | Knowles |
|---|---|---|---|
| Description | MIC COND ANALOG OMNI -53DB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5432 pcs | Data sheet | EK-23027.pdf |
| Voltage Range | 0.9V ~ 10V | Voltage - Rated | 1.3V |
| Type | Electret Condenser | Termination | Solder Pads |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) | Shape | Rectangular |
| Series | EK | Sensitivity | -53dB ±2dB @ 74dB SPL |
| S/N Ratio | - | Port Location | Side |
| Packaging | Bulk | Output Type | Analog |
| Other Names | 423-1007 EK-3027 EK3027 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 4.4 kOhms |
| Height (Max) | 0.089" (2.26mm) | Frequency Range | 100Hz ~ 10kHz |
| Direction | Omnidirectional | Detailed Description | 100Hz ~ 10kHz Analog Microphone Electret Condenser 0.9V ~ 10V Omnidirectional (-53dB ±2dB @ 74dB SPL) Solder Pads |
| Current - Supply | 50µA |
