Knowles

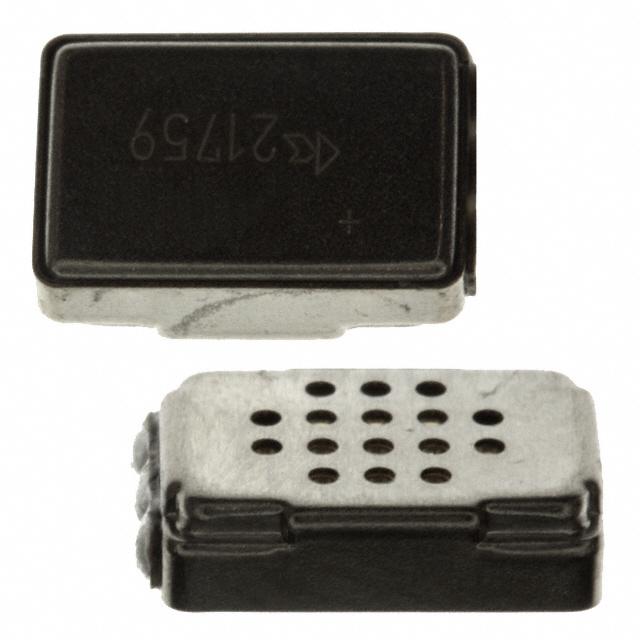

| Part Number | BT-21759-000 | Manufacturer | Knowles |
|---|---|---|---|
| Description | MIC COND ANALOG OMNI -60DB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4393 pcs | Data sheet | |
| Voltage Range | 0.9V ~ 10V | Voltage - Rated | 1.3V |
| Type | Electret Condenser | Termination | Solder Pads |
| Size / Dimension | 0.310" L x 0.218" W (7.87mm x 5.54mm) | Shape | Rectangular |
| Series | BT | Sensitivity | -60dB ±3dB @ 74dB SPL |
| S/N Ratio | - | Port Location | Top |
| Packaging | Bulk | Output Type | Analog |
| Other Names | 423-1168 BT-1759 BT-1759-ND BT-21759 BT-21759-000-ND BT21759000 Q1775541 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Impedance | 3.5 kOhms | Height (Max) | 0.090" (2.29mm) |
| Frequency Range | 100Hz ~ 10kHz | Direction | Omnidirectional |
| Detailed Description | 100Hz ~ 10kHz Analog Microphone Electret Condenser 0.9V ~ 10V Omnidirectional (-60dB ±3dB @ 74dB SPL) Solder Pads | Current - Supply | 50µA |
