APTB1615ESGC-F01

Kingbright

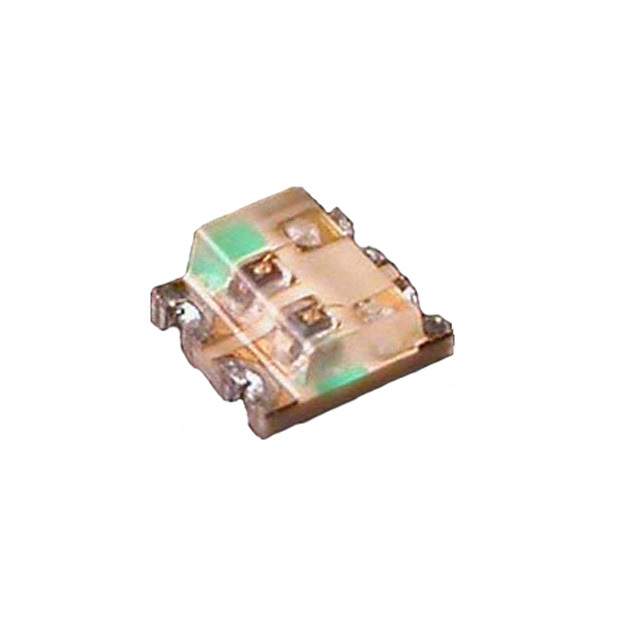

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTB1615ESGC-F01
Manufacturer/Brand:	Kingbright
Product description	LED GREEN/RED CLEAR CHIP SMD
Datasheets:	APTB1615ESGC-F01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	169777 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 169777 pcs

Reference Price (In US Dollars)

1 pcs: $0.188

10 pcs: $0.136

25 pcs: $0.111

100 pcs: $0.089

250 pcs: $0.075

500 pcs: $0.064

1000 pcs: $0.05

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.188

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTB1615ESGC-F01

Part Number	APTB1615ESGC-F01	Manufacturer	Kingbright
Description	LED GREEN/RED CLEAR CHIP SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	169777 pcs	Data sheet	APTB1615ESGC-F01.pdf
Wavelength - Peak	565nm Green, 627nm Red	Wavelength - Dominant	568nm Green, 617nm Red
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red	Viewing Angle	120°
Supplier Device Package	Chip LED	Size / Dimension	1.60mm L x 1.50mm W
Series	-	Packaging	Original-Reel®
Package / Case	0606 (1616 Metric)	Other Names	754-1149-6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	12mcd Green, 7mcd Red	Manufacturer Standard Lead Time	9 Weeks
Lens Transparency	Clear	Lens Style/Size	Rectangle with Flat Top, 1.20mm x 1.50mm
Lens Color	Colorless	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.70mm	Features	-
Detailed Description	Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 0606 (1616 Metric)	Current - Test	20mA Green, 20mA Red
Configuration	Independent	Color	Green, Red
