AM23ESGC

Kingbright

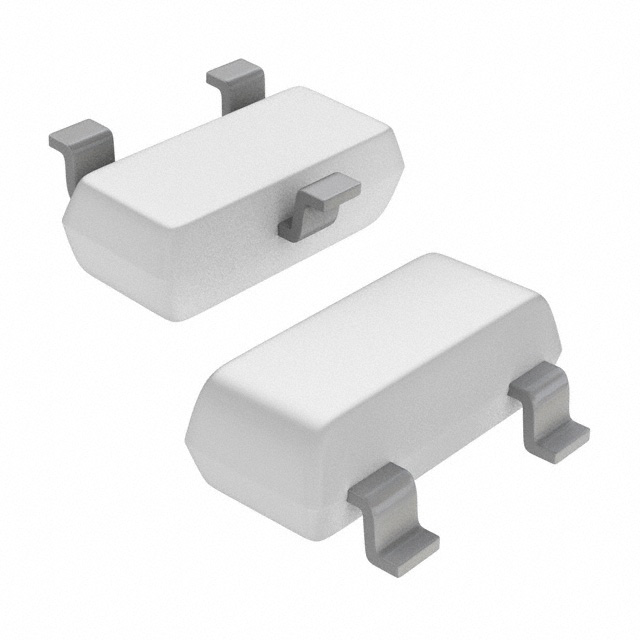

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AM23ESGC
Manufacturer/Brand:	Kingbright
Product description	LED GREEN/RED CLEAR SOT23-3 SMD
Datasheets:	AM23ESGC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	154496 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 154496 pcs

Reference Price (In US Dollars)

1 pcs: $0.195

10 pcs: $0.152

25 pcs: $0.127

100 pcs: $0.109

250 pcs: $0.097

500 pcs: $0.084

1000 pcs: $0.065

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.195

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AM23ESGC

Part Number	AM23ESGC	Manufacturer	Kingbright
Description	LED GREEN/RED CLEAR SOT23-3 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	154496 pcs	Data sheet	AM23ESGC.pdf
Wavelength - Peak	565nm Green, 627nm Red	Wavelength - Dominant	568nm Green, 617nm Red
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red	Viewing Angle	140°
Supplier Device Package	SOT-23-3	Size / Dimension	3.00mm L x 1.30mm W
Series	-	Packaging	Original-Reel®
Package / Case	TO-236-3, SC-59, SOT-23-3	Other Names	754-1633-6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	10mcd Green, 5mcd Red	Manufacturer Standard Lead Time	9 Weeks
Lens Transparency	Clear	Lens Style/Size	Rectangle with Flat Top, 3.00mm x 1.30mm
Lens Color	Colorless	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	1.20mm	Features	-
Detailed Description	Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red TO-236-3, SC-59, SOT-23-3	Current - Test	20mA Green, 20mA Red
Configuration	Common Cathode	Color	Green, Red
