Keystone Electronics Corp.

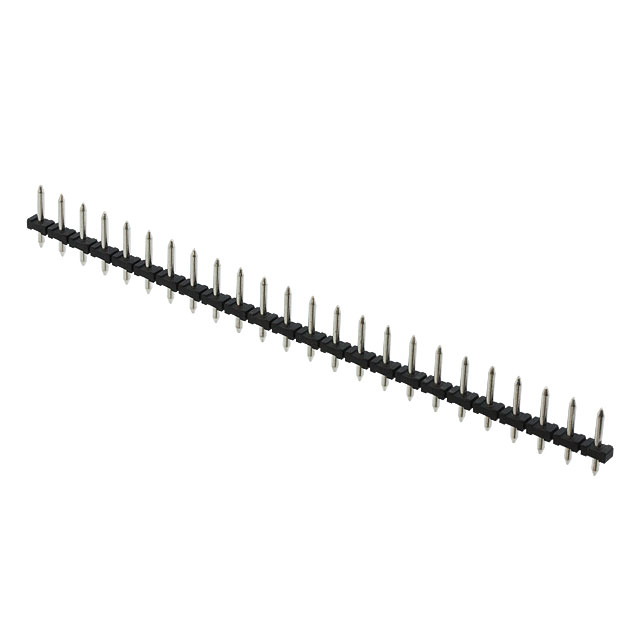

| Part Number | 8727 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM BLOCK HDR 24POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26562 pcs | Data sheet | 8727.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 250V |
| Type | Header, Male Pins, Unshrouded | Torque - Screw | - |
| Termination Style | Solder | Series | - |
| Screw Size | - | Positions Per Level | 24 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 36-8727 8727K 8727K-ND |
| Operating Temperature | -30°C ~ 120°C | Number of Positions | 24 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.078" (1.98mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | Vertical |
| Features | - | Detailed Description | 24 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Blue |
