Keystone Electronics Corp.
| Part Number | 604-7 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|

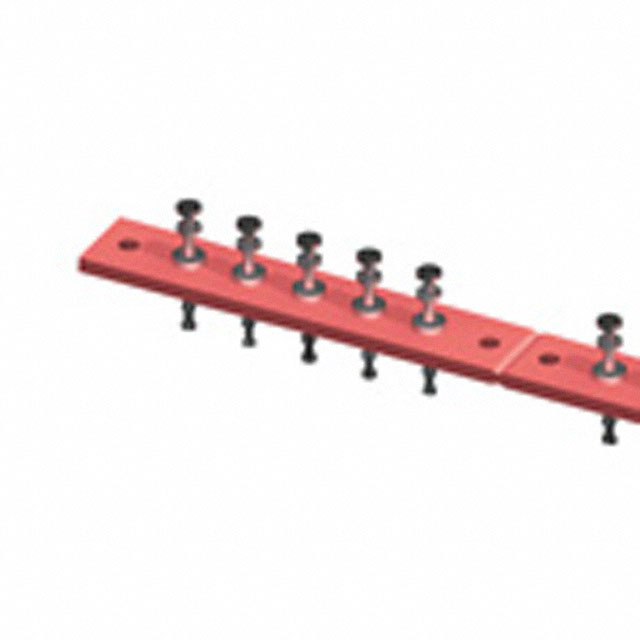

| Description | BOARD TURRET TERM W/1545 7POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12007 pcs | Data sheet | 1.604-7.pdf2.604-7.pdf |
| Type | Turret Board | Terminal Type | Turret, Dual End, Double Turret |
| Series | - | Row Spacing | - |
| Pitch | 0.375" (9.53mm) | Other Names | 36-604-7 604-7K 604-7K-ND |
| Number of Rows | 1 | Number of Positions | 7 |
| Mounting Hole Diameter | 0.120" (3.05mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Material - Board | XP Phenolic |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Standard Strip | Detailed Description | 7 Position Turret Board 0.375" (9.53mm) Turret, Dual End, Double Turret |
| Contact Material | Brass | Contact Finish | Tin |
| Board Size | 3.375" L x 0.500" W x 0.093" H (85.70mm x 12.70mm x 2.36mm) |
