Keystone Electronics Corp.
| Part Number | 1990-2 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.018DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 331921 pcs | Data sheet | 1.1990-2.pdf2.1990-2.pdf |
| Termination | Press-Fit, Knurled | Terminal Type | PC Pin |
| Terminal Style | Single End | Series | - |
| Pin Size - Below Flange | 0.018" (0.46mm) Dia | Pin Size - Above Flange | - |
| Packaging | Bulk | Other Names | 1990-2K 1990-2K-ND 36-1990-2 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.026" (0.66mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.260" (6.60mm) |
| Length - Below Flange | - | Length - Above Flange | 0.240" (6.10mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.032" (0.81mm) |

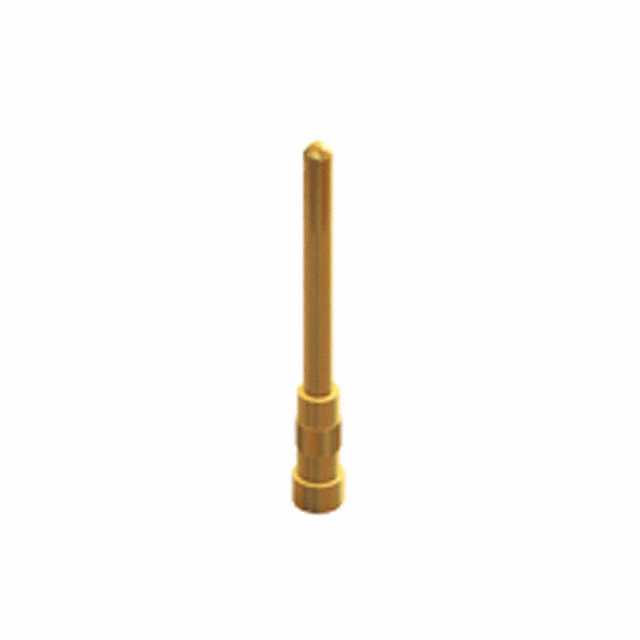

| Detailed Description | PC Pin Terminal Connector Through Hole Gold | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | 0.062" (1.57mm) |
