Keystone Electronics Corp.
| Part Number | 1698 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|

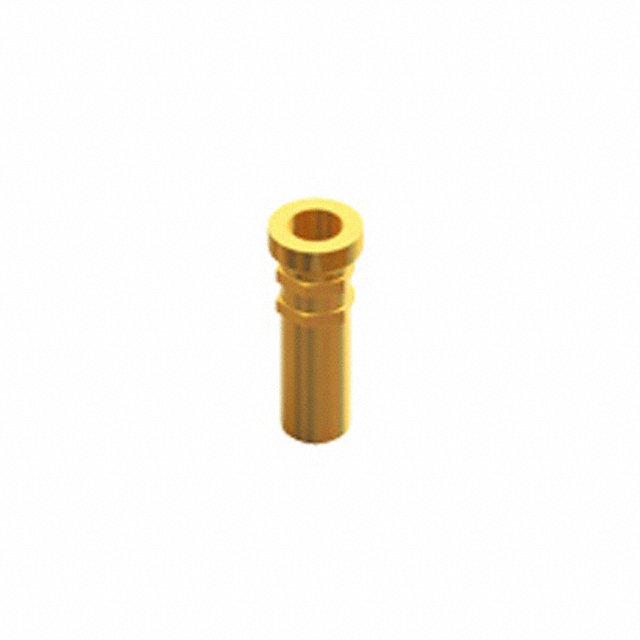

| Description | CONN PIN RCPT .025-.037 HEX | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 243684 pcs | Data sheet | 1.1698.pdf2.1698.pdf |
| Termination | Press-Fit, Hex | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.165" (4.19mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 1698K 1698K-ND 36-1698 |
| Operating Temperature | - | Mounting Hole Diameter | 0.063" (1.60mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.200" (5.08mm) | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insertion Force | - | Flange Diameter | 0.078" (1.98mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Press-Fit, Hex |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.025" ~ 0.037" (0.64mm ~ 0.94mm) |
