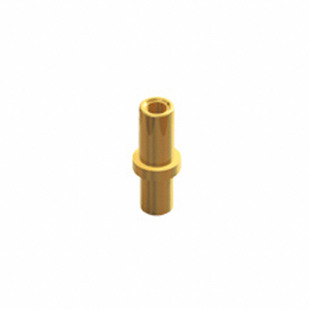

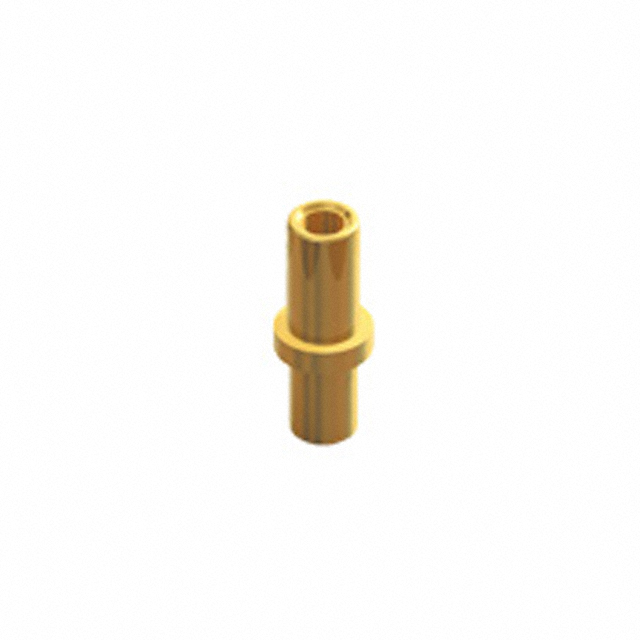

Keystone Electronics Corp.
| Part Number | 1678 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .032-.046 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 173037 pcs | Data sheet | 1.1678.pdf2.1678.pdf |
| Termination | Solder | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.220" (5.59mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 1678K 1678K-ND 36-1678 |
| Operating Temperature | - | Mounting Hole Diameter | 0.089" (2.26mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.317" (8.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insertion Force | - | Flange Diameter | - |
| Features | - | Detailed Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
